AIR MIX ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER]

id0740a1802500

Caution

•  If the gear position exceeds the operation range shown in the figure, the circuit in the actuator could be damaged. Always perform an actuator operation inspection with the gear movement within the range shown in the figure.

L.H.D.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Passenger-side scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Passenger-side A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(4)  Passenger-side lower panel (See PASSENGER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)

3.  Remove the duct.

amxzzw00003106

4.  Remove the air mix actuator. (See AIR MIX ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)

5.  Apply battery positive voltage and connect the ground to the air mix actuator terminals as indicated in the table below and verify the operation condition.

B+ Terminal	Ground Terminal	Operation
A	B	HOT → COLD
B	A	COLD → HOT

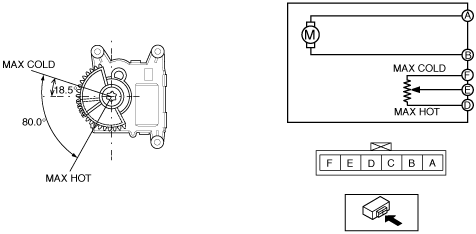

amxuuw00005674

6.  Verify that the resistance between terminals D and E, E and F matches the air mix actuator operation as shown in the graph.

amxuuw00005450

•  If the operation condition and resistance are not normal, replace the air mix actuator. (See AIR MIX ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)

R.H.D.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Passenger-side scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Passenger-side A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(4)  Passenger-side lower panel (See PASSENGER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)

3.  Remove the duct.

amxzzw00003085

4.  Remove the air mix actuator. (See AIR MIX ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)

5.  Apply battery positive voltage and connect the ground to the air mix actuator terminals as indicated in the table below and verify the operation condition.

B+ Terminal	Ground Terminal	Operation
A	B	COLD → HOT
B	A	HOT → COLD

amxzzw00003861

6.  Verify that the resistance between terminals D and E, E and F matches the air mix actuator operation as shown in the graph.

amxzzw00003455

•  If the operation condition and resistance are not normal, replace the air mix actuator. (See AIR MIX ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
