•  The climate control unit controls the air conditioner in conjunction with the A/C operations performed by the occupants.

•  The climate control unit outputs an operation signal for each switch or dial. (See MANUAL AIR CONDITIONER SYSTEM [MANUAL AIR CONDITIONER].)

•  A logic-type climate control unit has been adopted.

•  The climate control unit consists of a control panel and a control unit.

•  The MS-CAN terminal resistance is integrated into the climate control unit.

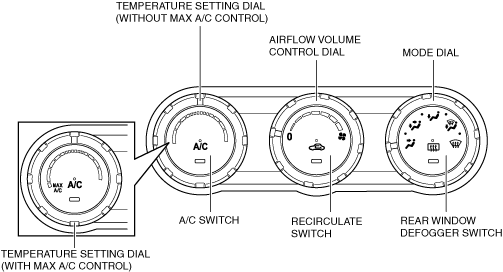

•  The switches and dials shown in the figure are positioned on the control panel.

amxzzn00001747

•  For the climate control unit operation, refer to the [MANUAL AIR CONDITIONING SYSTEM [MANUAL AIR CONDITIONER]]. (See MANUAL AIR CONDITIONER SYSTEM [MANUAL AIR CONDITIONER].)
