•  The air intake actuator opens/closes the air intake door in the A/C unit to switch the air inlet.

•  The air intake actuator opens/closes the air intake door to the FRESH or RECIRCULATE position by driving the motor.

•  A mechanical lock type air intake actuator has been adopted.

•  The air intake actuator is located on the A/C unit.

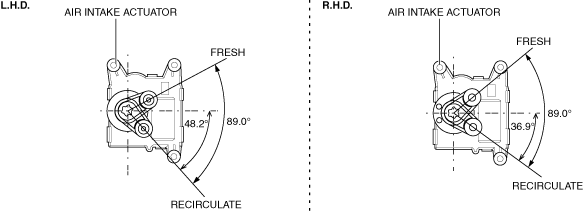

•  The operation range of the air intake actuator is as shown in the figure.

amxzzn00001748

•  For the air intake actuator operation, refer to the [MANUAL AIR CONDITIONER SYSTEM [MANUAL AIR CONDITIONER]]. (See MANUAL AIR CONDITIONER SYSTEM [MANUAL AIR CONDITIONER].)

•  Not applicable
