AIRFLOW MODE ACTUATOR [MANUAL AIR CONDITIONER]

id0740a2005700

Purpose

• The airflow mode actuator opens/closes the mode door in the A/C unit to switch the air vent.

Function

Door open/close function

• The door open/close function opens/closes the mode door to the VENT, BI-LEVEL, HEAT, DEF/HEAT or DEFROSTER positions by driving the airflow mode actuator motor.

Door position detection function

• The door position detection function fluctuates the potentiometer voltage which is linked to the airflow mode actuator motor drive.

Construction

• A potentiometer type airflow mode actuator has been adopted.

• The airflow mode actuator is located on the air distribution unit.

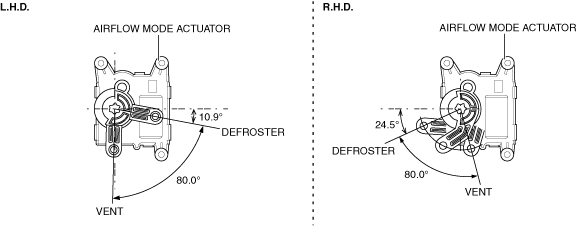

• The operation range of the airflow mode actuator is as shown in the figure.

amxzzn00001749

Operation

• For the airflow mode actuator operation, refer to the [MANUAL AIR CONDITIONER SYSTEM [MANUAL AIR CONDITIONER]]. (See MANUAL AIR CONDITIONER SYSTEM [MANUAL AIR CONDITIONER].)

Fail-safe

• Not applicable
