FOREWORD [POWER WINDOW SYSTEM]

id0903a0805400

Special Service Tool (SST)

49US 15 1A0   PROBE KIT

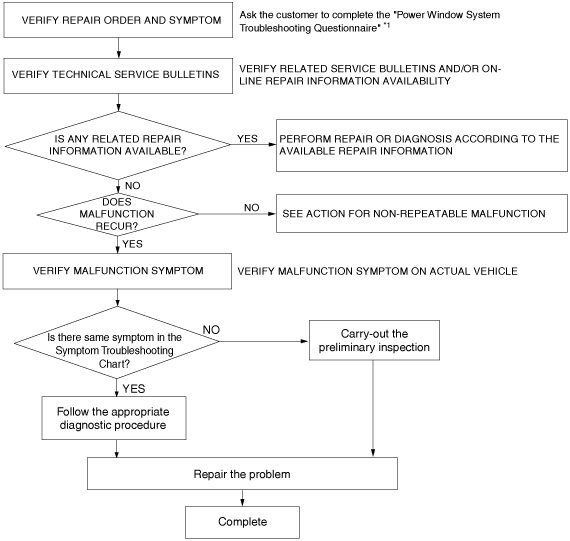

Troubleshooting Procedure

amxuuw00005396

Caution

•  If any of the following conditions continues indefinitely, the power window motor will heat up causing the protection circuit (integrated in power window motor) to operate. If this occurs, the operation of the power window motor protection circuit temporarily disables the power windows.

―  Continuous up and down operation of the power window.

―  Continuously pulling up the power window switch while the window glass is fully closed.

―  Continuously pressing the power window switch while the window glass fully opened.

•  If the power window motor has a temporary malfunction and the power window main switch is operated, the power window system transfers to malfunction mode by the power window control module.

•  While the power window system is in malfunction mode, the power windows cannot be operated using the auto open/close function.

Note

•  If the following operations have been performed, initial setting is reset, and auto up/down operation is disabled. Therefore, performing the initial setting is necessary.(See POWER WINDOW SYSTEM INITIALIZATION PROCEDURE.)

―  Power window main switch is replaced

―  Power window subswitch is replaced

―  Door glass is removed

―  Power window regulator is removed

―  Power window motor is removed

Action for non-repeatable malfunction

―  Based on the repair order form, attempt to drive the vehicle or perform tests to replicate the malfunction, record the data (such as power window main switch and power window motor circuit voltage) at that time, and detect the malfunction cause.

―  Shake the wiring harness or connector of the electrical component which is suspected to be the cause of the malfunction, and inspect for malfunction.

ac5uuw00002301

―  Inspect the female terminals on the connector of the electric component which is suspected to be the cause of the malfunction for poor connection. (See ELECTRICAL SYSTEM.)

Note

•  SST (Reference): PROBE KIT (49US 15 1A0)

am6zzw00016940
