SYSTEM DOES NOT OPERATE [PARKING SENSOR]

id0903z4829300

Note

• If there is any vehicle malfunction complaint lodged by a customer, perform FOREWORD [PARKING SENSOR] malfunction diagnosis according to the troubleshooting procedure. (See FOREWORD [PARKING SENSOR].)

Description

Buzzer does not sound after ignition is switched ON and the selector lever (AT)/Shift lever (MT) is in the R position.

Possible Causes

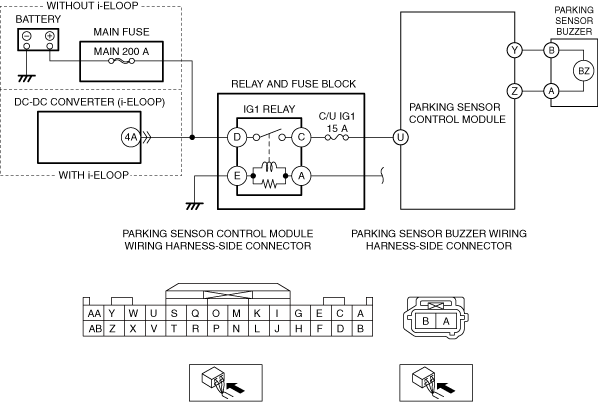

•  Parking assist unit power supply malfunction

―  Open circuit in wiring harness between IG1 relay and parking assist unit terminal U

―  Short to ground in wiring harness between IG1 relay and parking assist unit terminal U

―  C/U IG1 15 A fuse damage, burnt out

•  Malfunction in parking assist unit ground

―  Open circuit in wiring harness between parking assist unit terminal Q and body ground

―  Ground point lifting or loosening

•  Volume adjustment of buzzer is at minimum

•  Buzzer circuit malfunction

―  Open or short circuit in wiring harness between parking assist unit terminal Y and parking sensor buzzer terminal B

―  Open or short circuit in wiring harness between parking assist unit terminal Z and parking sensor buzzer terminal A

•  Parking sensor buzzer malfunction

•  Parking assist unit malfunction

Diagnostic Procedure

Step

Inspection

Action

1

INSPECT PARKING ASSIST UNIT POWER SUPPLY

•  Switch the ignition ON (engine off or on).

•  Measure the voltage at parking assist unit terminal U.

•  Is the voltage B+?

Yes

Go to the next step.

No

•  Inspect the C/U IG1 15 A fuse.

If the fuse is burned out:

•  Inspect and repair the wiring harness between the C/U IG1 15 A fuse and parking assist unit terminal U for a short circuit to the ground system.

If the fuse is not damaged or burned out:

•  Refer to the wiring diagram and verify whether or not there is a mid-connector between IG relay terminal C and parking assist unit terminal U.

If there is a mid-connector

•  Determine the malfunctioning part by inspecting the mid-connector and the terminal for corrosion, damage, or pin disconnection, and the mid-wiring harness for a open circuit.

•  Repair or replace the wiring harness which has a malfunction.

If there is no mid-connector

•  Repair or replace the wiring harness which has a malfunction.

2

ADJUST BUZZER VOLUME

•  Adjust the buzzer volume.
(See BEEP SOUND ADJUSTMENT.)

•  Was the malfunction corrected?

Yes

Inspection completed (buzzer volume adjustment malfunction).

No

Go to the next step.

3

INSPECT PARKING ASSIST UNIT GROUND CIRCUIT

•  Switch the ignition off.

•  Disconnect the negative battery terminal.
(See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

•  Disconnect the parking assist unit connector.

•  Verify the continuity between connector terminal Q on parking assist unit vehicle side and body ground.

•  Is there continuity?

Yes

Inspect and repair the ground point for looseness, disengagement, or lifting.

Repair or replace the wiring harness.

No

Go to the next step.

4

INSPECT WIRING HARNESS BETWEEN PARKING ASSIST UNIT AND PARKING SENSOR BUZZER FOR OPEN CIRCUIT

•  Disconnect the connectors of the parking sensor buzzer and parking assist unit.

•  Inspect for continuity between the following wiring harnesses:

―  Parking assist unit terminal Y and parking sensor buzzer terminal B

―  Parking assist unit terminal Z and parking sensor buzzer terminal A

•  Is there continuity?

Yes

Go to the next step.

No

•  Refer to the wiring diagram and verify whether or not there is a mid-connector between the following wiring harnesses:

―  Parking assist unit terminal Y and parking sensor buzzer terminal B

―  Parking assist unit terminal Z and parking sensor buzzer terminal A

If there is a mid-connector

―  Determine the malfunctioning part by inspecting the mid-connector and the terminal for corrosion, damage, or pin disconnection, and the mid-wiring harness for a open circuit.

―  Repair or replace the wiring harness which has a malfunction.

If there is no mid-connector

―  Repair or replace the wiring harness which has a malfunction.

5

INSPECT WIRING HARNESS BETWEEN PARKING ASSIST UNIT AND PARKING SENSOR BUZZER FOR SHORT TO GROUND

•  Inspect for continuity between the following wiring harnesses:

―  Parking assist unit terminal Y and ground

―  Parking assist unit terminal Z and ground

•  Is there continuity?

Yes

•  Refer to the wiring diagram and verify whether or not there is a mid-connector between the following wiring harnesses:

―  Parking assist unit terminal Y and parking sensor buzzer terminal B

―  Parking assist unit terminal Z and parking sensor buzzer terminal A

If there is a mid-connector

―  Determine the malfunctioning part by inspecting the mid-connector and the terminal for corrosion, damage, or pin disconnection, and the mid-wiring harness for a short to ground.

―  Repair or replace the wiring harness which has a malfunction.

If there is no mid-connector

―  Repair or replace the wiring harness which has a malfunction.

No

Go to the next step.

6

DETERMINE IF MALFUNCTION CAUSE IS PARKING SENSOR BUZZER OR PARKING ASSIST UNIT

•  Inspect the parking sensor buzzer.
(See PARKING SENSOR BUZZER INSPECTION.)

•  Is the parking sensor buzzer normal?

Yes

Replace the parking assist unit.

(See PARKING ASSIST UNIT REMOVAL/INSTALLATION.)

No

Replace the parking sensor buzzer.

(See PARKING SENSOR BUZZER REMOVAL/INSTALLATION.)
