FRONT BUMPER SLIDER REMOVAL/INSTALLATION

id091000030200

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the front bumper. (See FRONT BUMPER REMOVAL.) (See FRONT BUMPER INSTALLATION.)

3.  Remove the screw and bolt.

amxuuw00003103

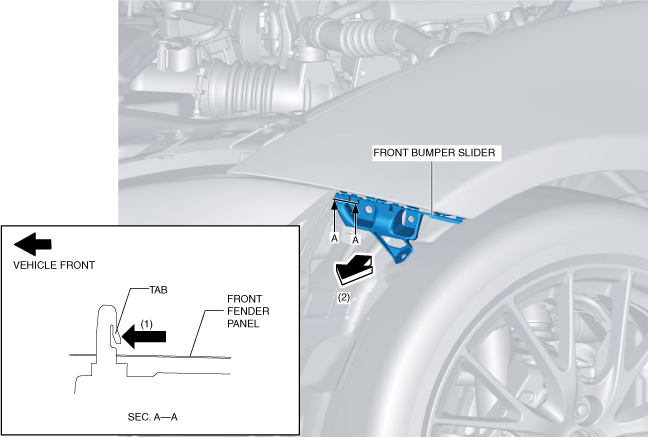

4.  While pressing tab in the direction of arrow (1), remove the front bumper slider in the direction of arrow (2).

amxzzw00005090

5.  Remove the front bumper slider.

6.  Install in the reverse order of removal.
