FUEL-FILLER LID REMOVAL/INSTALLATION

id091000800100

1.  Remove the bolts.

amxuuw00003131

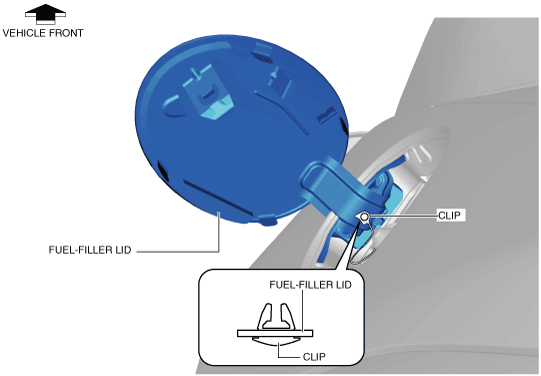

2.  Remove the clip.

amxuuw00003132

3.  Remove the fuel-filler lid.

4.  Install in the reverse order of removal.

5.  Adjust the fuel-filler lid. (See FUEL-FILLER LID ADJUSTMENT.)
