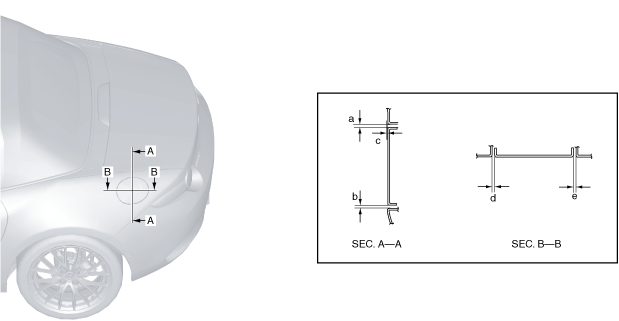

1. Measure the clearance and height difference between the fuel-filler lid and the vehicle body.
amxzzw00004515
Standard clearance
a: 1.7—3.7 mm {0.07—0.14 in}
b: 1.7—3.7 mm {0.07—0.14 in}
c: –0.5—1.5 mm {–0.01—0.05 in}
d: 1.7—3.7 mm {0.07—0.14 in}
e: 1.7—3.7 mm {0.07—0.14 in}
• If the measured value is not within the standard clearance, adjust the clearance using the following procedure.
1. Loosen the fuel-filler lid installation bolts, move the fuel-filler lid, and adjust the installation position. (See FUEL-FILLER LID REMOVAL/INSTALLATION.)
