POWER OUTER MIRROR INSPECTION

id091200002700


Mirror Glass Adjustment

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Door trim (See DOOR TRIM REMOVAL/INSTALLATION.)
(2)  Door module panel (See DOOR MODULE PANEL REMOVAL/INSTALLATION.)
(3)  Door glass (See DOOR GLASS REMOVAL/INSTALLATION.)
(4)  Door speaker (See DOOR SPEAKER REMOVAL/INSTALLATION.)
(5)  Glass guide (See DOOR QUARTER GLASS REMOVAL/INSTALLATION.)

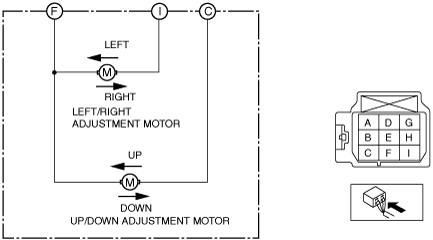

3.  Apply battery positive voltage and connect the ground to the power outer mirror terminals and inspect the power outer mirror operation.

B+ terminal

Ground terminal

Operation
C
F
Up
F
C
Down
I
F
Left
F
I
Right

amxuuw00004173
•  If the power outer mirror does not operate as indicated in the table, replace the power outer mirror. (See POWER OUTER MIRROR REMOVAL/INSTALLATION.)


Heated Outer Mirror Inspection

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Door trim (See DOOR TRIM REMOVAL/INSTALLATION.)
(2)  Door module panel (See DOOR MODULE PANEL REMOVAL/INSTALLATION.)
(3)  Door glass (See DOOR GLASS REMOVAL/INSTALLATION.)
(4)  Door speaker (See DOOR SPEAKER REMOVAL/INSTALLATION.)
(5)  Glass guide (See DOOR QUARTER GLASS REMOVAL/INSTALLATION.)

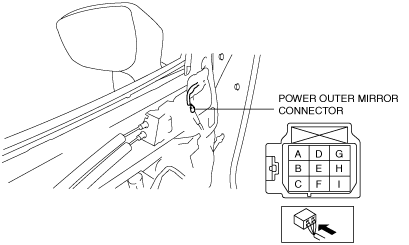

3.  Verify that the continuity between heated outer mirror connector terminals is as indicated in the table.

amxuuw00004174
amxuuw00004175

•  If not as indicated in the table, replace the power outer mirror. (See POWER OUTER MIRROR REMOVAL/INSTALLATION.)


Blind Spot Monitoring (BSM) Warning Light Inspection

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Door trim (See DOOR TRIM REMOVAL/INSTALLATION.)
(2)  Door module panel (See DOOR MODULE PANEL REMOVAL/INSTALLATION.)
(3)  Door glass (See DOOR GLASS REMOVAL/INSTALLATION.)
(4)  Door speaker (See DOOR SPEAKER REMOVAL/INSTALLATION.)
(5)  Glass guide (See DOOR QUARTER GLASS REMOVAL/INSTALLATION.)

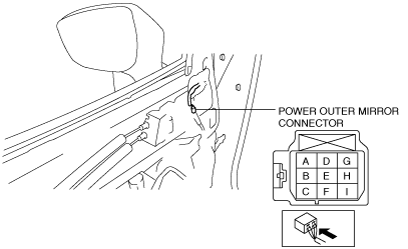

3.  Verify that the continuity between blind spot monitoring (BSM) warning light connector terminals is as indicated in the table.

amxuuw00004176
amxuuw00004177

•  If not as indicated in the table, replace the power outer mirror. (See POWER OUTER MIRROR REMOVAL/INSTALLATION.)
