DOOR LOCK ACTUATOR INSPECTION

id091400009300


LH

1.  Fully close the door glass.

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the following parts:

(1)  Door trim (See DOOR TRIM REMOVAL/INSTALLATION.)
(2)  Door module panel (See DOOR MODULE PANEL REMOVAL/INSTALLATION.)
(3)  Door key cylinder (See DOOR KEY CYLINDER REMOVAL/INSTALLATION.)
(4)  Inner handle (See INNER HANDLE REMOVAL/INSTALLATION.)
(5)  Door latch and lock actuator (See DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)

4.  Apply battery positive voltage and connect the ground to the door lock actuator terminals as indicated in the table below and verify the operation condition.

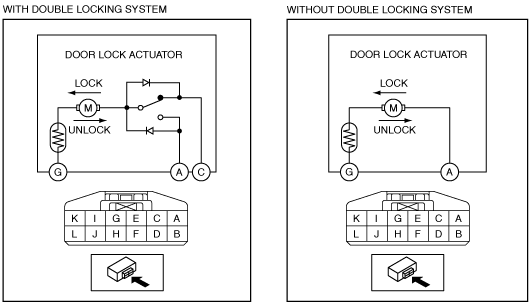

amxzzw00003480

With double locking system

B+ Terminal

Ground Terminal

Operation
C
G
Lock
A
G
Double lock
G
A, C
Unlock

Without double locking system

B+ Terminal

Ground Terminal

Operation
A
G
Lock
G
A
Unlock

•  If not as indicated in the table, replace the door latch and lock actuator. (See DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)

RH

1.  Fully close the door glass.

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the following parts:

(1)  Door trim (See DOOR TRIM REMOVAL/INSTALLATION.)
(2)  Door module panel (See DOOR MODULE PANEL REMOVAL/INSTALLATION.)
(3)  Inner handle (See INNER HANDLE REMOVAL/INSTALLATION.)
(4)  Door latch and lock actuator (See DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)

4.  Apply battery positive voltage and connect the ground to the door lock actuator terminals as indicated in the table below and verify the operation condition.

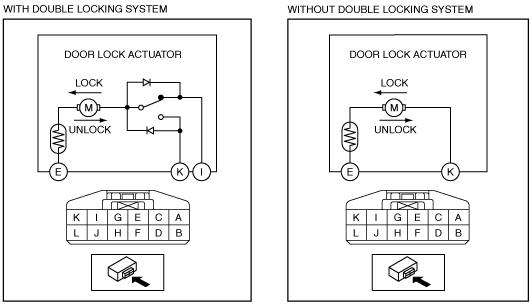

amxzzw00003481

With double locking system

B+ Terminal

Ground Terminal

Operation
I
E
Lock
K
E
Double lock
E
K, I
Unlock

Without double locking system

B+ Terminal

Ground Terminal

Operation
K
E
Lock
E
K
Unlock

•  If not as indicated in the table, replace the door latch and lock actuator. (See DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)
