TRUNK LID RELEASE ACTUATOR INSPECTION

id091400513500

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the trunk end trim. (See TRUNK END TRIM REMOVAL/INSTALLATION.)

3.  Remove the trunk lid latch and release actuator. (See TRUNK LID LATCH AND RELEASE ACTUATOR REMOVAL/INSTALLATION.)

4.  Press in the latch lever of the trunk lid latch and release actuator using a flathead screwdriver, and set it to the latched condition.

amxuuw00005437

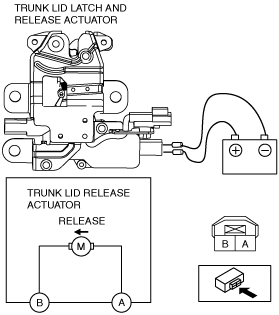

5.  Connect terminal A to the positive battery voltage, connect terminal B to the ground, and verify that the latch lever is released and the condition changes to the unlatch condition.

amxuuw00005438

•  If the operation cannot be verified, replace the trunk lid latch and release actuator.
