TRUNK LID LATCH SWITCH INSPECTION

id091400513600

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the trunk end trim. (See TRUNK END TRIM REMOVAL/INSTALLATION.)

3.  Remove the trunk lid latch and release actuator. (See TRUNK LID LATCH AND RELEASE ACTUATOR REMOVAL/INSTALLATION.)

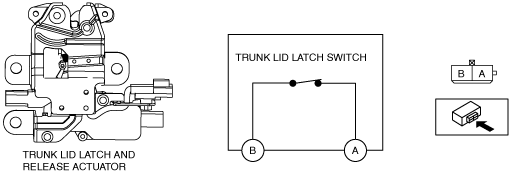

4.  Verify that the continuity is as indicated in the table.

amxuuw00004204

amxuuw00005439

•  If not as indicated in the table, replace the trunk lid latch and release actuator.

Note

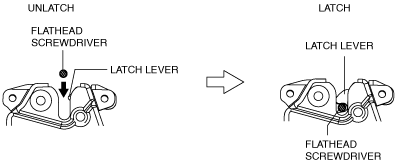

•  When inspecting the latch condition of the trunk lid latch switch, press in the latch lever using a flathead screwdriver and set it to the latched position.

amxuuw00005440
