DOOR LOCK SWITCH INSPECTION

id091400518700

Door Lock Switch Inspection

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2. Remove the door trim. (See DOOR TRIM REMOVAL/INSTALLATION)

3. Remove the power window main switch. (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION)

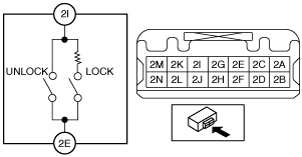

4. Verify that the continuity is as indicated in the table.

amxuuw00005441

amxuuw00005442

• If the continuity is not as indicated in the table, replace the power window main switch.

LED Illumination Inspection

• The door lock switch is built into the power window main switch.

• If the door lock switch inspection is performed, perform the inspection referring to the [POWER WINDOW MAIN SWITCH INSPECTION]. (See POWER WINDOW MAIN SWITCH INSPECTION.)
