OUTER HANDLE REMOVAL/INSTALLATION

id091400700300

Driver's Side

1.  Fully close the door glass.

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the following parts:

(1)  Door trim (See DOOR TRIM REMOVAL/INSTALLATION.)

(2)  Door module panel (See DOOR MODULE PANEL REMOVAL/INSTALLATION.)

(3)  Door key cylinder (See DOOR KEY CYLINDER REMOVAL/INSTALLATION.)

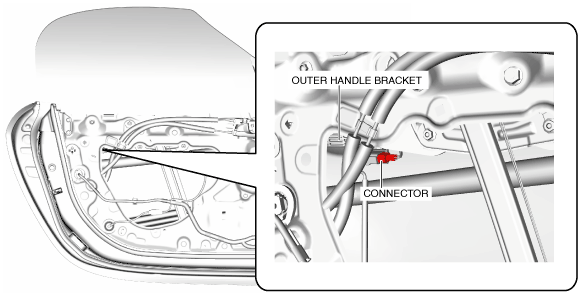

4.  Disconnect the keyless antenna connector. (with advanced keyless entry system)

amxuuw00002603

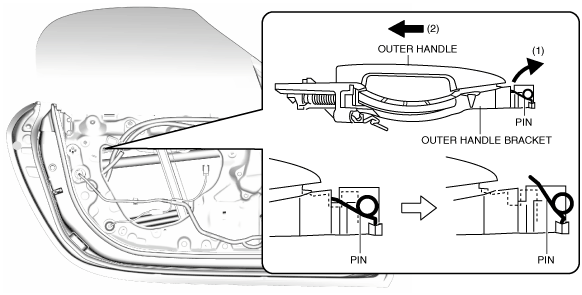

5.  While pulling the outer handle bracket pin in the direction of arrow (1) shown in the figure, pull the outer handle in the direction of arrow (2) to detach the outer handle bracket pin and the outer handle.

amxuuw00002604

6.  Remove the outer handle in the direction of the arrow shown in the figure.

amxuuw00002605

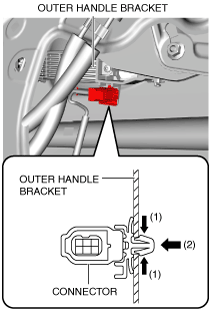

7.  While pressing the tabs of the clip in the direction of arrow (1) shown in the figure, press it in the direction of arrow (2) to detach the connector tabs from the outer handle bracket. (with advanced keyless entry system)

amxuuw00002606

8.  Loosen the screw securing the outer handle bracket.

amxuuw00002607

Note

•  The screw cannot be removed because the outer handle bracket has a stopper which prevents the screw from falling.

9.  Pull the outer handle bracket in the direction of arrow (1) shown in the figure and detach the outer handle bracket hooks from the body.

amxuuw00002608

10.  Lift the outer handle bracket in the direction of arrow (2) shown in the figure to pull the rod out of the rod holder. (SeeOuter handle bracket installation note.)

amxuuw00002609

11.  Remove the outer handle bracket.

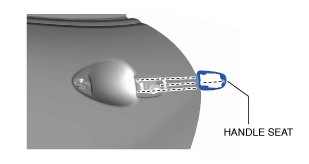

12.  Remove the handle seat from the body.

amxuuw00002610

Outer handle bracket installation note

•  To assure that the rod is inserted into the rod holder hole, verify that the there is no excessive play.

amxuuw00002611

Passenger's Side

1.  Fully close the door glass.

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the door trim. (See DOOR TRIM REMOVAL/INSTALLATION.)

4.  Remove the door module panel. (See DOOR MODULE PANEL REMOVAL/INSTALLATION.)

5.  Remove the service hole cover.

amxuuw00002612

6.  Loosen the screw from the rear outer handle bracket.

amxuuw00002613

Note

•  The screw cannot be removed because the outer handle bracket has a stopper which prevents the screw from falling.

7.  While pressing the outer handle bracket tab in the direction of arrow (1) shown in the figure, pull the outer handle garnish in the direction of arrow (2) to detach the outer handle bracket from the outer handle garnish.

amxuuw00002614

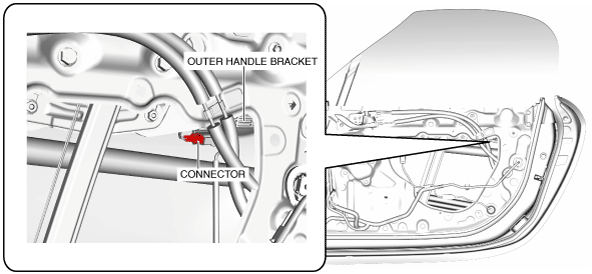

8.  Disconnect the keyless antenna connector. (with advanced keyless entry system)

amxuuw00002615

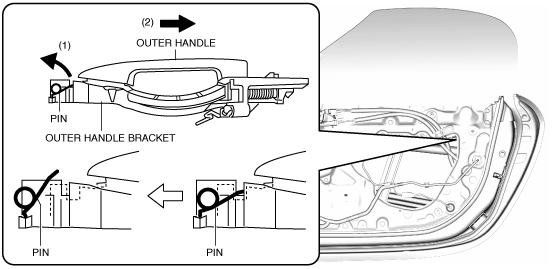

9.  While pulling the outer handle bracket pin in the direction of arrow (1) shown in the figure, pull the outer handle in the direction of arrow (2) to detach the outer handle bracket pin and the outer handle.

amxuuw00002819

10.  Remove the outer handle in the direction of the arrow shown in the figure.

amxuuw00002617

11.  While pressing the tabs of the clip in the direction of arrow (1) shown in the figure, press it in the direction of arrow (2) to detach the connector tabs from the outer handle bracket. (with advanced keyless entry system)

amxuuw00002618

12.  Loosen the screw securing the outer handle bracket.

amxuuw00002619

Note

•  The screw cannot be removed because the outer handle bracket has a stopper which prevents the screw from falling.

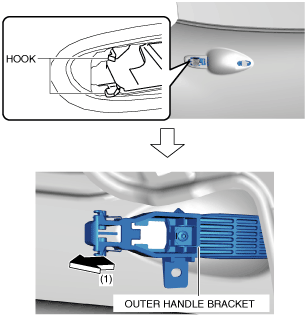

13.  Pull the outer handle bracket in the direction of arrow (1) shown in the figure and detach the outer handle bracket hooks from the body.

amxuuw00002620

14.  Lift the outer handle bracket in the direction of arrow (2) shown in the figure to pull the rod out of the rod holder. (See Outer handle bracket installation note.)

amxuuw00002621

15.  Remove the outer handle bracket.

16.  Remove the handle seat from the body.

amxuuw00002820

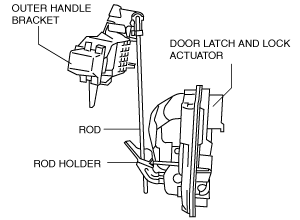

Outer handle bracket installation note

•  To assure that the rod is inserted into the rod holder hole, verify that the there is no excessive play.

amxuuw00002623
