ROOF LINK LIMIT SWITCH REMOVAL/INSTALLATION

id091600104200

1.  Using the retractable hardtop switch, keep the front roof half-open.

amxzzw00004091

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the quarter trim. (See QUARTER TRIM REMOVAL/INSTALLATION.)

4.  Disconnect the connectors.

amxzzw00004618

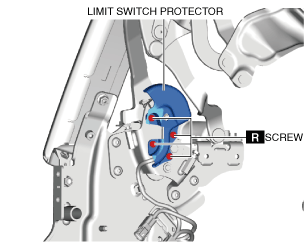

5.  Remove the screws.

amxzzw00004619

6.  Remove the limit switch protector.

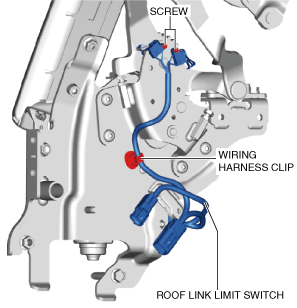

7.  Remove the wiring harness clip.

amxzzw00004620

8.  Remove the screws.

9.  Remove the roof link limit switch.

10.  Install in the reverse order of removal.
