TOP LOCK LIMIT SWITCH REMOVAL/INSTALLATION

id091600104700

1.  Using the retractable hardtop switch, keep the front roof half-open.

amxzzw00004101

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the following parts:

(1)  Front roof link cover (See FRONT ROOF LINK COVER REMOVAL/INSTALLATION.)

(2)  Front headliner (See FRONT HEADLINER REMOVAL/INSTALLATION.)

(3)  Top lock (See TOP LOCK REMOVAL/INSTALLATION.)

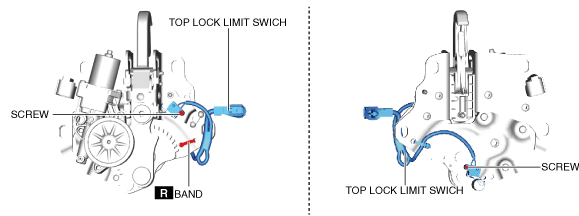

4.  Remove the band.

amxzzw00004622

5.  Remove the screws.

6.  Remove the top lock limit switch.

7.  Install in the reverse order of removal.
