SIDE COWL GRILLE REMOVAL/INSTALLATION

id091600207696

1.  Remove the wiper arm and blade. (See WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

2.  Disconnect washer hose B from joint pipe A. (See WASHER HOSE REMOVAL/INSTALLATION.)

3.  Remove the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION.)

4.  Remove the fasteners.

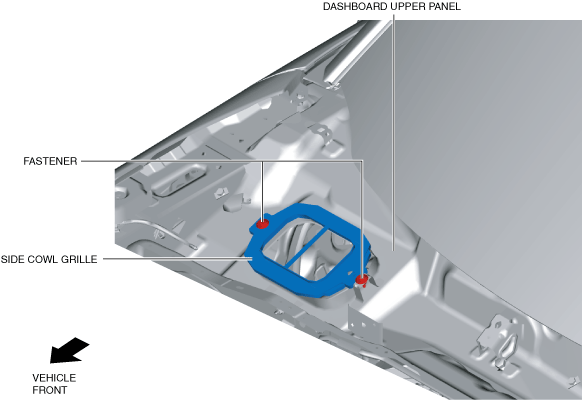

L.H.D.

amxzzw00004660

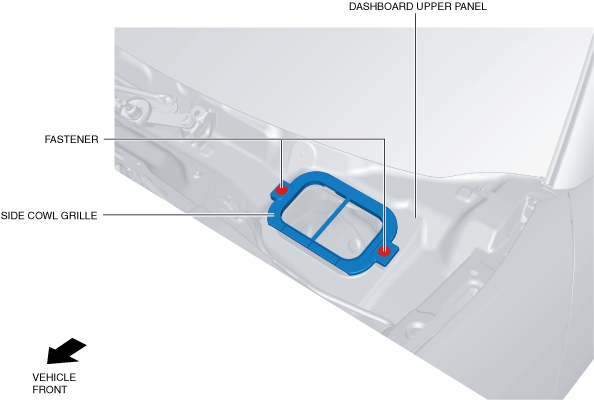

R.H.D.

amxzzw00004661

5.  Remove the side cowl grille.

6.  Install in the reverse order of removal.
