CENTER PANEL No.2 REMOVAL/INSTALLATION

id091700564500

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Passenger-side scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Passenger-side A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(4)  Passenger-side lower panel (See PASSENGER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)

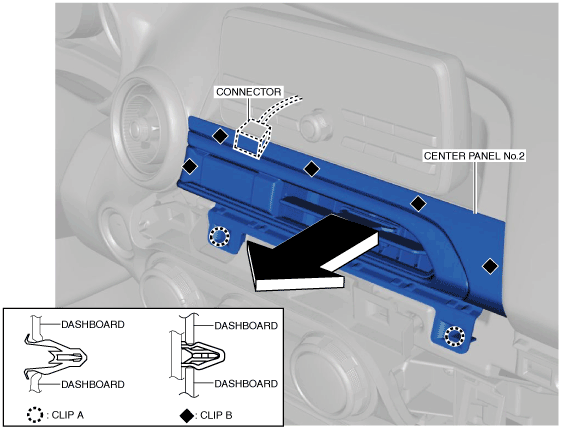

3.  Move the center panel No.2 in the direction of the arrow shown in the figure, and detach clips A and B from the dashboard.

amxuuw00002667

4.  Disconnect the connector.

5.  Remove the center panel No.2.

6.  Install in the reverse order of removal.
