REAR CONSOLE REMOVAL/INSTALLATION

id091700602000

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Selector lever knob (AT) (See AUTOMATIC TRANSMISSION SHIFT MECHANISM REMOVAL/INSTALLATION.)

(2)  Shift lever knob (MT)

(3)  Shift panel component (See SHIFT PANEL REMOVAL/INSTALLATION.)

(4)  Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)

(5)  Parking brake lever boot panel (See PARKING BRAKE LEVER BOOT PANEL REMOVAL/INSTALLATION.)

3.  Remove the screws.

amxzzw00004776

4.  Remove the wiring harness clip.

amxzzw00004777

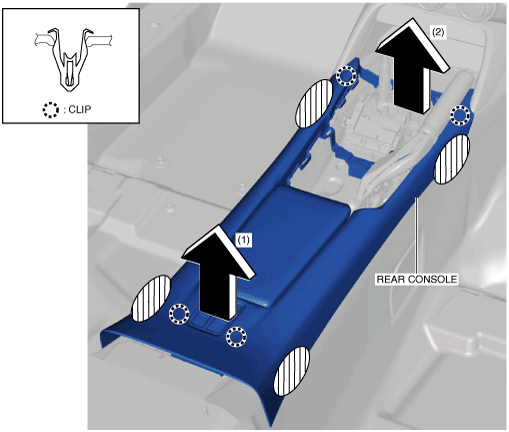

5.  Hold the shaded areas shown in the figure, lift up the rear console in the order of arrow (1) and (2), and detach the clips.

amxuuw00002743

6.  Install in the reverse order of removal.
