TRUNK SIDE TRIM REMOVAL/INSTALLATION

id091700604400

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the trunk end trim. (See TRUNK END TRIM REMOVAL/INSTALLATION.)

3.  Partially peel back the trunk covering. (See TRUNK COVERING REMOVAL/INSTALLATION.)

4.  Partially peel back the partition board. (See PARTITION BOARD REMOVAL/INSTALLATION.)

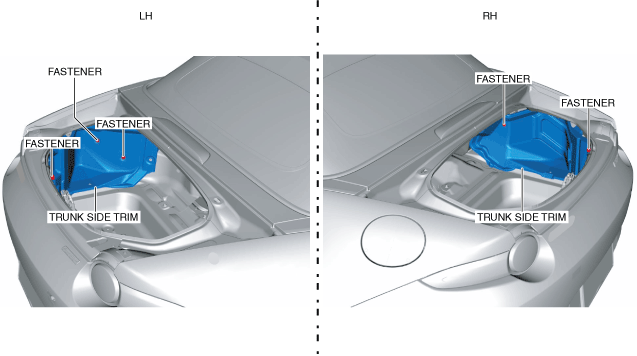

5.  Remove the fasteners.

amxzzw00004783

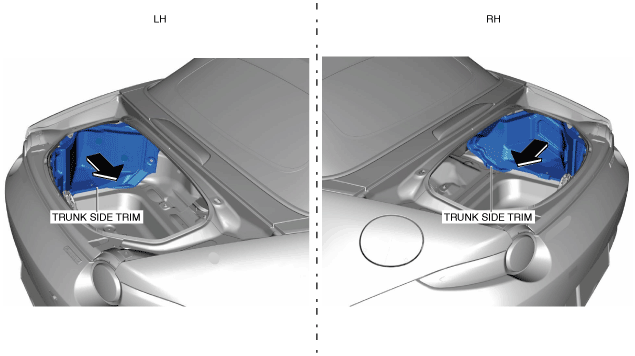

6.  Remove the trunk side trim in the direction of the arrow shown in the figure.

amxuuw00002761

7.  Install in the reverse order of removal.
