SHIFT PANEL DISASSEMBLY/ASSEMBLY

id091700608400

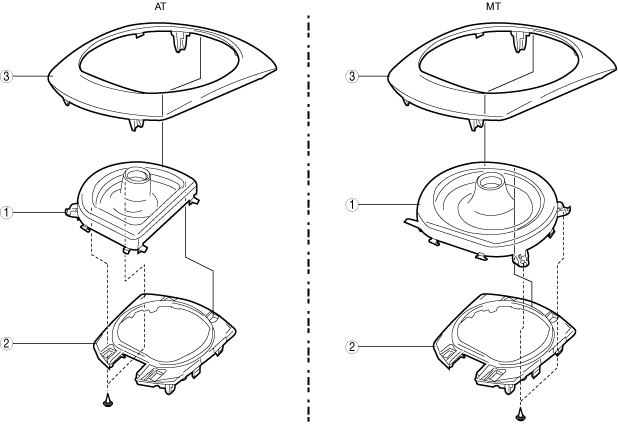

1.  Disassemble in the order indicated in the table.

amxzzw00004796

1	Boot
2	Shift boot panel
3	Indicator panel

2.  Remove the indicator when replacing the shift panel. (AT) (See AUTOMATIC TRANSMISSION SHIFT MECHANISM REMOVAL/INSTALLATION.)

3.  Assemble in the reverse order of disassembly.
