REAR COMBINATION LIGHT SHORT-CORD REMOVAL/INSTALLATION

id091800025100

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(2)  Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION.)

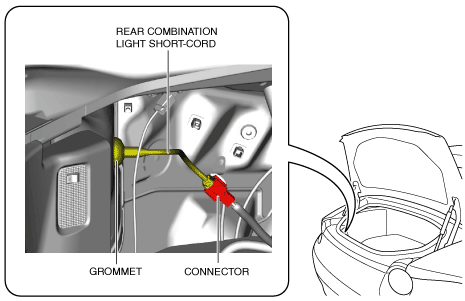

3.  Disconnect the connector.

amxuuw00003276

4.  Press the grommet to the outside from inside the body.

5.  Remove the rear combination light short-cord.

6.  Install in the reverse order of removal.
