RUNNING LIGHT REMOVAL/INSTALLATION

id091800430400

With active bonnet

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the front bumper. (See FRONT BUMPER REMOVAL.) (See FRONT BUMPER INSTALLATION.)

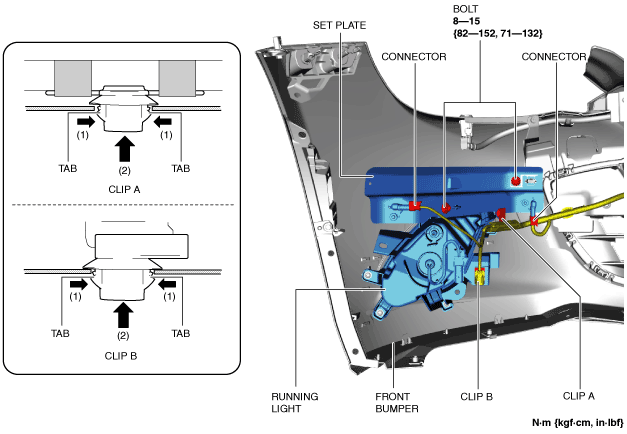

3.  Disconnect the connectors.

amxzzw00003177

4.  Remove the bolts.

5.  While pressing the clip A tabs in the direction of arrows (1) shown in the figure, press the clip A in the direction of arrow (2) to detach the clip A tabs from the set plate.

6.  While pressing the clip B tabs in the direction of arrows (1) shown in the figure, press the clip B in the direction of arrow (2) to detach the clip B tabs from the running light.

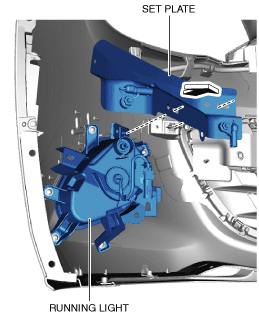

7.  Pull the set plate in the direction of the arrow shown in the figure and remove the set plate.

amxzzw00003178

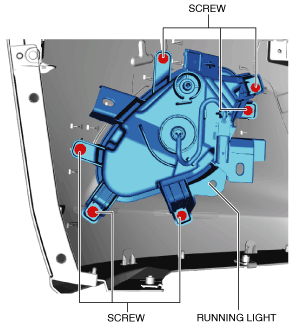

8.  Remove the screws.

amxzzw00003179

9.  Remove the running light.

10.  Install in the reverse order of removal.

Without active bonnet

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Partially peel back the front mudguard. (See FRONT MUDGUARD REMOVAL/INSTALLATION.)

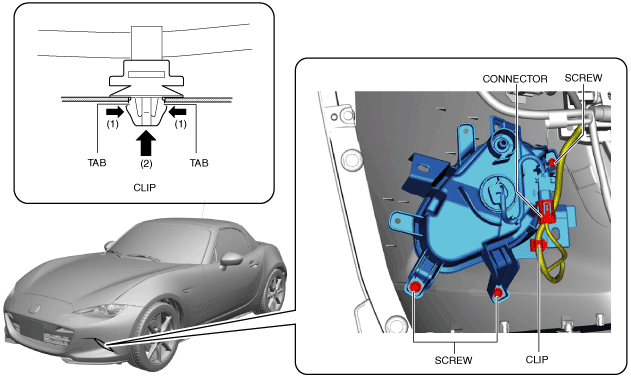

3.  Disconnect the connector.

amxzzw00003180

4.  Remove the screws.

5.  While pressing the clip tabs in the direction of arrows (1) shown in the figure, press the clip in the direction of arrow (2) to detach the clip tabs from the running light.

6.  Remove the running light.

7.  Install in the reverse order of removal.
