WASHER TANK REMOVAL/INSTALLATION

id091900801700

Without Headlight Cleaner System

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2. Drain the washer fluid.

Note

• If the procedure is performed with washer fluid in the washer tank, the washer fluid may leak out. Drain the washer fluid before performing the procedure.

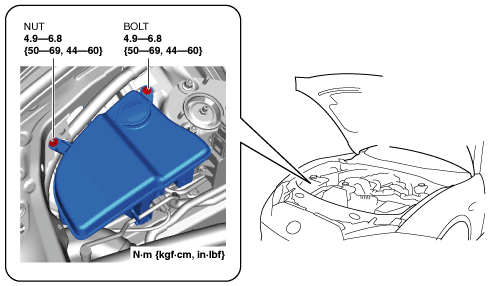

3. Remove the nut.

amxuuw00004679

4. Remove the bolt.

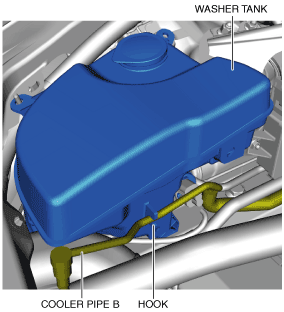

5. Pull cooler pipe B out from the washer tank hook.

amxuuw00004680

6. Lift the washer tank in the direction of the arrow shown in the figure.

amxuuw00004681

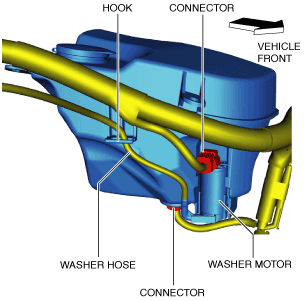

7. Disconnect the connector.

amxzzw00003229

8. Disconnect the washer hose from the washer motor.

9. Pull the washer hose out from the washer tank hook.

10. Remove the washer tank.

11. When replacing the washer tank, remove the washer motor. (See WASHER MOTOR REMOVAL/INSTALLATION.)

Note

• If the washer motor is not malfunctioning, install the washer motor to a new washer tank.

12. Install in the reverse order of removal.

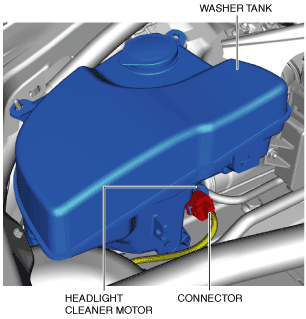

With Headlight Cleaner System

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2. Partially peel back the front mudguard No.1 (RH). (See FRONT MUDGUARD REMOVAL/INSTALLATION.)

3. Drain the washer fluid.

Note

• If the procedure is performed with washer fluid in the washer tank, the washer fluid may leak out. Drain the washer fluid before performing the procedure.

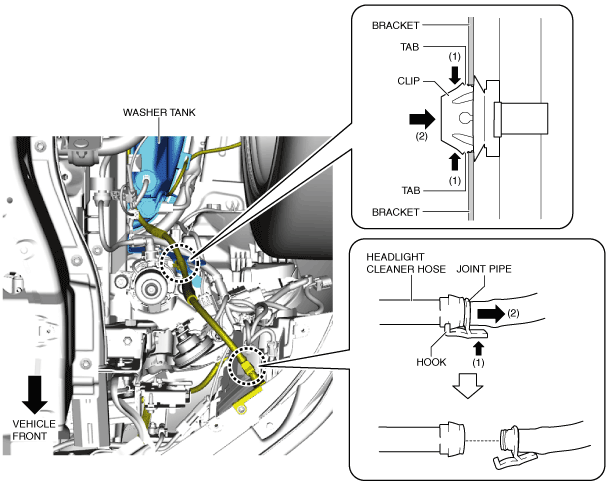

4. While pressing the hook of the joint pipe in the direction of arrow (1) shown in the figure, pull the joint pipe in the direction of arrow (2) to disconnect the joint pipe from the headlight cleaner hose.

amxzzw00003230

5. While pressing the clip tabs in the direction of arrows (1) shown in the figure, pull the clip in the direction of arrow (2) to detach the clip tabs from the bracket.

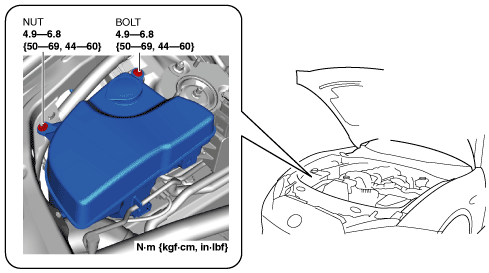

6. Remove the nut.

amxzzw00003231
