HEADLIGHT CLEANER MOTOR REMOVAL/INSTALLATION

id091900803300

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Partially peel back the front mudguard No.1 (RH). (See FRONT MUDGUARD REMOVAL/INSTALLATION.)

3.  Remove the washer tank. (See WASHER TANK REMOVAL/INSTALLATION.)

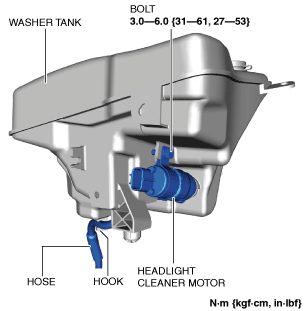

4.  Remove the bolt.

amxzzw00003240

5.  Pull the hose out from the washer tank hook.

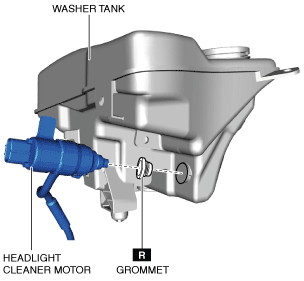

6.  Remove the headlight cleaner motor.

amxzzw00003241

7.  Remove the grommet.

8.  Install in the reverse order of removal.
