HEADLIGHT CLEANER HOSE REMOVAL/INSTALLATION

id091900803100

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the front bumper. (See FRONT BUMPER REMOVAL.) (See FRONT BUMPER INSTALLATION.)

3.  Disconnect the joint pipe from the headlight cleaner nozzle. (See HEADLIGHT CLEANER NOZZLE REMOVAL/INSTALLATION.)

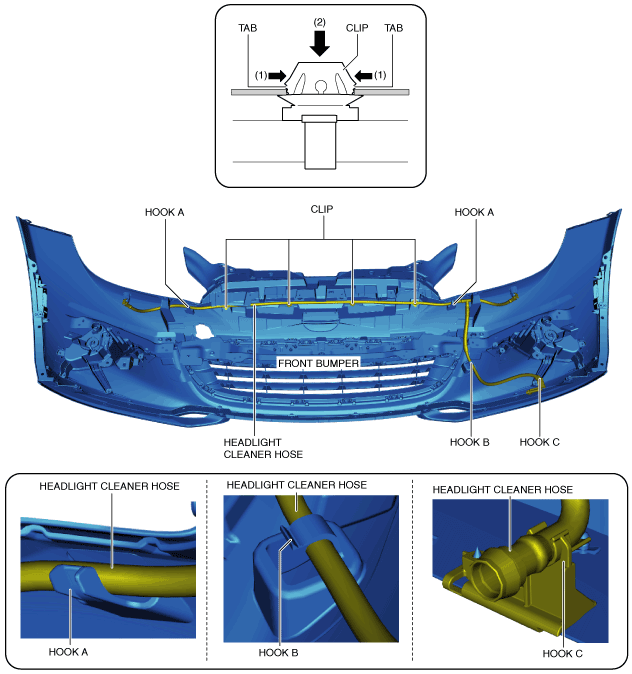

4.  While pressing the clip tabs in the direction of arrows (1) shown in the figure, press the clip in the direction of arrow (2) to detach the clip tabs from the front bumper.

amxzzw00003239

5.  Pull out the headlight cleaner hose from the hooks A.

6.  Pull out the headlight cleaner hose from the hook B.

7.  Pull out the headlight cleaner hose from the hook C.

8.  Remove the headlight cleaner hose.

9.  Install in the reverse order of removal.
