ACCESSORY SOCKET SHORT-CORD INSPECTION

id092100002300

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Passenger-side scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Passenger-side A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(4)  Passenger-side lower panel (See PASSENGER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)

(5)  Accessory socket (See ACCESSORY SOCKET REMOVAL/INSTALLATION.)

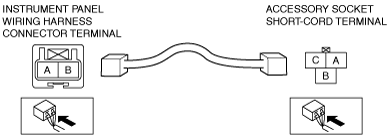

3.  Verify that the continuity between the accessory socket short-cord terminals is as indicated in the table.

amxuuw00004549

ardjjw00006186

•  If not as indicated in the table, replace the accessory socket short-cord. (See A/C UNIT REMOVAL/INSTALLATION.) (See A/C UNIT DISASSEMBLY/ASSEMBLY.)
