INDICATOR UNIT

id092200037400


Purpose

•  The indicator unit notifies the user of the following conditions.
―  Passenger's side seat belt fastened condition
―  Passenger air bag deactivation (PAD) operation condition (with passenger air bag deactivation (PAD) system)
―  Seat warmer operation condition (with seat warmer system)
―  Retractable hardtop operation condition (with retractable hardtop)

Functions

•  The indicator unit turns the passenger's side seat belt warning light on/off based on the request signal sent from the instrument cluster.

Seat warmer switch function (with seat warmer system)

•  The indicator unit switches the temperature level (number of indicators turned on) in the order of 3, 2, 1, and OFF according to the seat warmer switch operation, and sends the temperature level signal to the seat warmer unit.
•  The indicator unit records the temperature level (number of indicators turned on) when the ignition is switched from ON (engine off or on) to off, and operates at the recorded temperature level (number of indicators turned on) when the ignition is switched ON (engine off or on) again.
•  If the battery power supply is disconnected, the temperature level recorded by the indicator unit is eliminated.

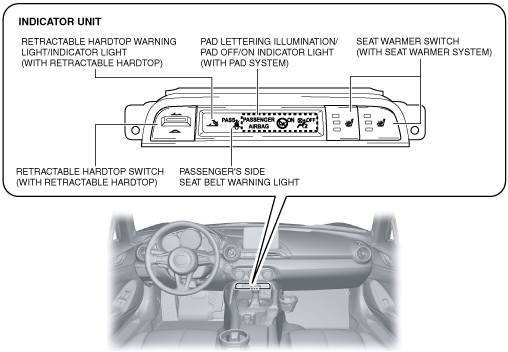

Construction

•  The indicator unit is positioned in the front console.
•  The indicator unit consists of the following parts.
―  Passenger's side seat belt warning light
―  Passenger air bag deactivation (PAD) lettering illumination (with passenger air bag deactivation (PAD) system)
―  Passenger air bag deactivation (PAD) OFF/ON indicator light (with passenger air bag deactivation (PAD) system)
―  Seat warmer switch (with seat warmer system)
―  Retractable hardtop switch (with retractable hardtop)
―  Retractable hardtop warning light/indicator light (with retractable hardtop)
amxzzn00001375

Operation

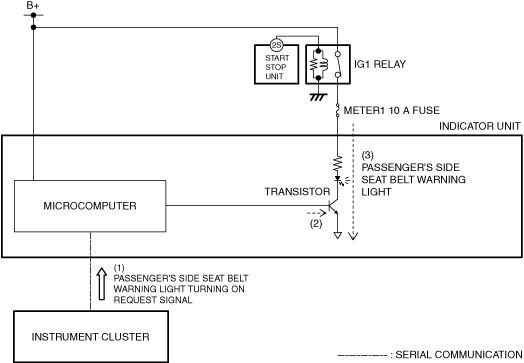

Passenger's side seat belt warning light

1.  When the indicator unit receives (1) the passenger's seat belt warning light turning on request signal from the instrument cluster while the ignition is switched ON (engine off or on), it turns on (2) the transistor.

2.  When the transistor turns on, a ground circuit with the passenger's side seat belt warning light is established and the passenger's side seat belt warning light turns on (3).

amxzzn00001376


Passenger air bag deactivation (PAD) indicator light (with passenger air bag deactivation (PAD) system)

•  For the PAD indicator light operation, refer to [PASSENGER AIR BAG DEACTIVATION (PAD) SYSTEM]. (See PASSENGER AIR BAG DEACTIVATION (PAD) SYSTEM.)


Seat warmer switch (with seat warmer system)

•  For details on the seat warmer switch operation, refer to the [SEAT WARMER SYSTEM]. (See SEAT WARMER SYSTEM.)


Retractable hardtop switch (with retractable hardtop)

•  For details on the retractable hardtop switch operation, refer to the [RETRACTABLE HARDTOP SWITCH]. (See RETRACTABLE HARDTOP SWITCH.)


Retractable hardtop operation indicator light (with retractable hardtop)

•  For details on the retractable hardtop warning light/indicator light operation, refer to the [RETRACTABLE HARDTOP WARNING LIGHT/INDICATOR LIGHT]. (See RETRACTABLE HARDTOP WARNING LIGHT/INDICATOR LIGHT.)


Fail-safe

•  Not applicable
