INTAKE-AIR SYSTEM [SKYACTIV-G 1.5, SKYACTIV-G 2.0]

id0113zg003300

Structural View

amxzzn00001203

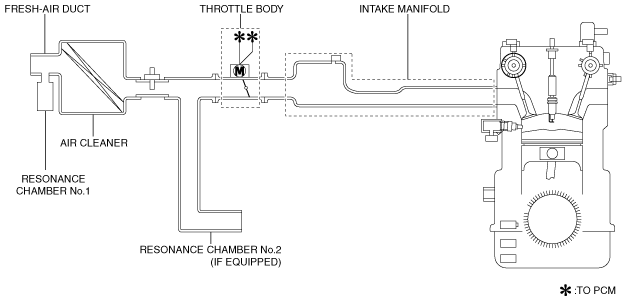

System Diagram

amxzzn00001232

Vacuum Hose Routing Diagram

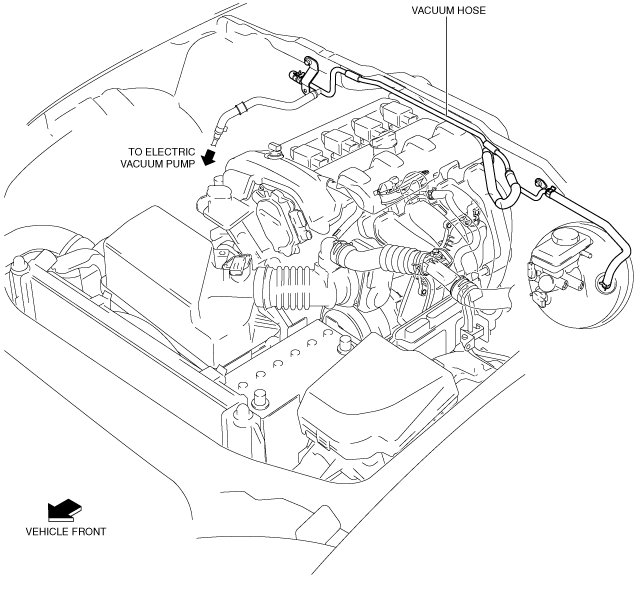

L.H.D.

amxzzn00001231

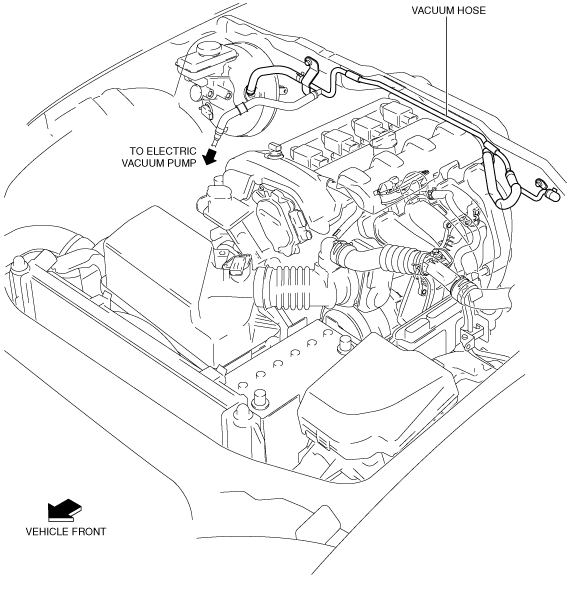

R.H.D.

amxzzn00001204

Structure

Part name	Reference
Fresh-air duct	(See FRESH-AIR DUCT [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
Resonance chamber No.1	(See RESONANCE CHAMBER [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
Resonance chamber No.2 (if equipped)
Air cleaner	(See AIR CLEANER [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
Throttle body	(See THROTTLE BODY [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
Intake manifold	(See INTAKE MANIFOLD [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
Accelerator pedal	(See ACCELERATOR PEDAL, KICKDOWN SWITCH [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
Vacuum hose	—
