PURGE SOLENOID VALVE REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0]
id0116zj804300
1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)
2. Remove the seal cover. (See SEAL COVER REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.

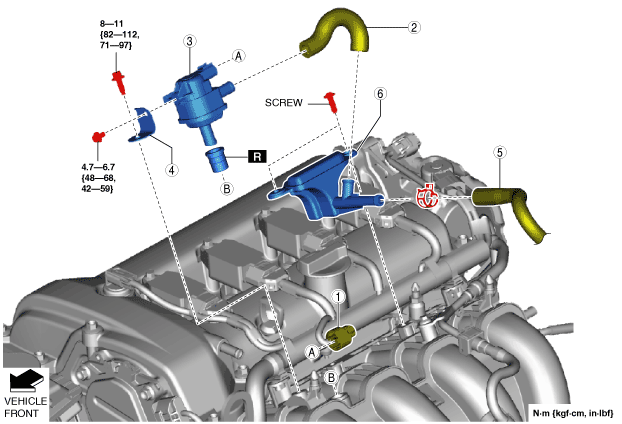

amxuuw00005281
|
|
1
|
Purge solenoid valve connector
|
|
2
|
Vacuum hose
|
|
3
|
Purge solenoid valve
|
|
4
|
Bracket
|
|
5
|
Evaporative hose No.1
|
|
6
|
Catch tank
|

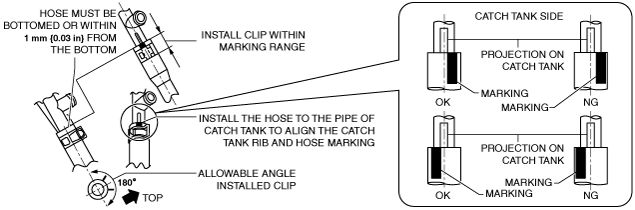

Evaporative Hose No.1 Installation Note
1. Install the evaporative hose No.1 as shown in the figure.
amxuuw00005282
|

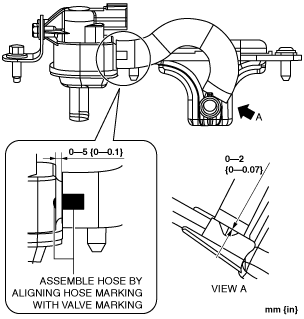

Vacuum Hose Installation Note
1. Install the vacuum hose as shown in the figure.
amxuuw00005283
|
