CHARGING SYSTEM WARNING INDICATION/CHARGING SYSTEM WARNING LIGHT [SKYACTIV-G 1.5, SKYACTIV-G 2.0]

id0117t2302500

Purpose, Function

• Warns the driver of a charging system malfunction.

― For details on DTCs which illuminate the charging system warning indication/charging system warning light, refer to ON-BOARD DIAGNOSTIC SYSTEM TEST MODE. (See ON-BOARD DIAGNOSTIC SYSTEM TEST MODE [PCM (SKYACTIV-G 1.5, SKYACTIV-G 2.0)].)

Construction

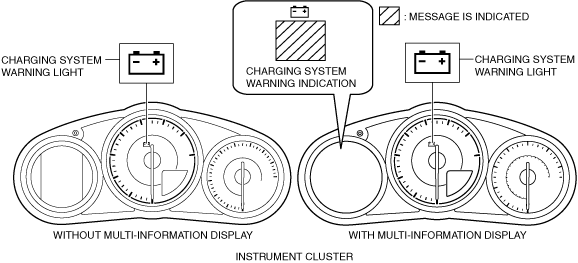

• The charging system warning indication/charging system warning light is built into the instrument cluster. (See INSTRUMENT CLUSTER.)

amxzzn00001610

Operation

• Illuminates when a malfunction occurs in the charging system and a DTC is stored in the PCM.

• For vehicles with center display, a warning message in the center display is displayed when the charging system warning indication/charging system warning light is turned on. For the message content and verification method, refer to the CENTER DISPLAY. (See CENTER DISPLAY [WITH CENTER DISPLAY].)
