IGNITION SYSTEM [SKYACTIV-G 1.5, SKYACTIV-G 2.0]

id0118i5108200

Outline

• A direct ignition system for independent ignition control has been adopted to control voltage depletion and to stabilize the ignition performance of the spark plug.

• The ion sensor is built into the ignition coil to detect pre-ignition.

• Iridium spark plugs have been adopted to enhance ignition performance.

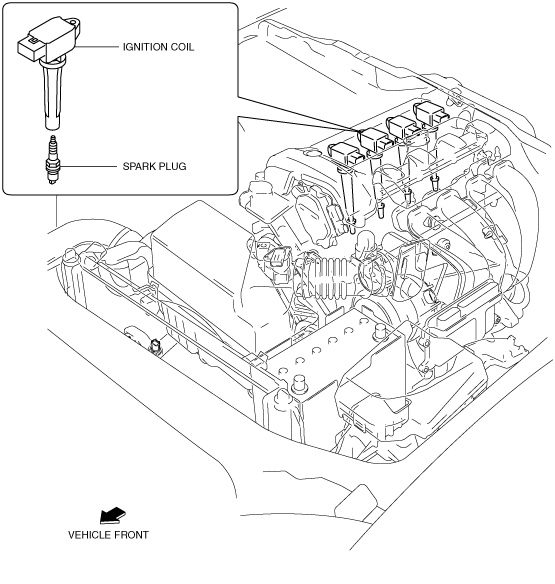

Structural View

amxzzn00000737

Structure

• Consists of the following parts:

Spark plug

(See SPARK PLUG [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)

Ignition coil

(See IGNITION COIL [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)

Spark plug	(See SPARK PLUG [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
Ignition coil	(See IGNITION COIL [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
