KNOCK SENSOR (KS) REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0]

id0140g8802900

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Seal cover (See SEAL COVER REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
(2)  Front suspension tower bar (Vehicles with front suspension tower bar) (See FRONT SUSPENSION TOWER BAR REMOVAL/INSTALLATION.)
(3)  Intake manifold (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)

3.  Disconnect the KS connector.

4.  Remove the bolt.

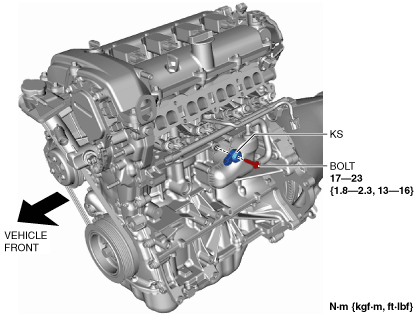

amxuuw00003666

5.  Remove the KS. (See KS Installation Note.)

6.  Install in the reverse order of removal.


KS Installation Note

•  Verify that there is no foreign matter caught between the KS unit and cylinder block.
•  The direction of the KS connector is within the angle range shown in the figure.
