DTC P0713:00 [TCM (SJ6A-EL)]

id0502o1817500

DTC P0713:00

TFT sensor: Open circuit
DETECTION CONDITION
•  Vehicle condition: TCM normal during engine rotation
•  Status: Detects ATF temperature of less than –43 °C {–45.4 °F}
•  Period: Confirmed 12 times in 1 s or more
FAIL-SAFE FUNCTION
•  Performs control with the ATF temperature of 80 °C {176 °F}.
•  Inhibits learning control.
•  Inhibits the neutral control.
•  Inhibits the i-stop control.
•  Inhibits slip control.
•  Inhibits the slope control.
•  Inhibits AAS mode.
•  Inhibits 5GR and 6GR.
•  Inhibits direct mode.
•  Inhibits the torque increase request.
POSSIBLE CAUSE
•  TFT sensor malfunction

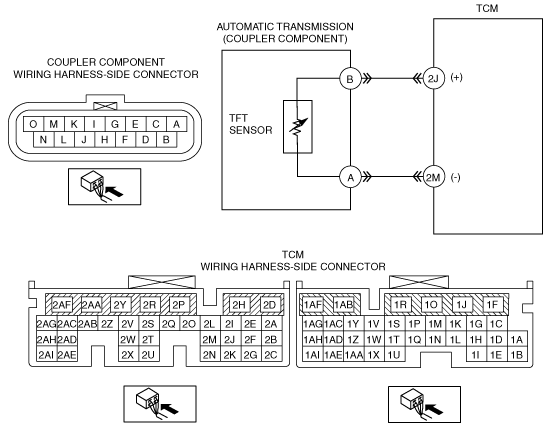

•  Open circuit in wiring harness between TFT sensor and TCM terminal 2J
•  Open circuit in wiring harness between TFT sensor and TCM terminal 2M
•  TCM connector or terminal malfunction
•  Coupler component connector or terminal malfunction
•  TCM malfunction

Diagnostic procedure

STEP

INSPECTION

ACTION
1
RECORD VEHICLE STATUS WHEN DTC WAS DETECTED TO UTILIZE WITH REPEATABILITY VERIFICATION
Note
•  Recording can be facilitated using the screen capture of the PC function.
•  Record the freeze frame data/snap shot data.
—
Go to the next step.
2
VERIFY RELATED SERVICE INFORMATION AVAILABILITY
•  Verify related Service Information availability.
•  Is any related Service Information available?
Yes
Perform repair or diagnosis according to the available Service Information.
•  If the vehicle is not repaired, go to the next step.
No
Go to the next step.
3
INSPECT RESISTANCE OF TFT SENSOR CIRCUIT
•  Inspect for resistance between coupler component terminals 2J and 2M (wiring harness-side).
•  Is resistance as shown below?
―  ATF temperature 10°C {50°F}: approx. 6.445 kilohms
―  ATF temperature 25°C {77°F}: approx. 3.5 kilohms
―  ATF temperature 110°C {230°F}: approx. 0.247 kilohms
Yes
Go to the next step.
No
Go to Step 6.
4
INSPECT TCM CONNECTOR FOR POOR CONNECTION
•  Switch the ignition off.
•  Disconnect the TCM connector.
•  Inspect for poor connection at TCM terminals 2J and 2M (such as damaged/pulled-out pins, corrosion).
•  Are terminals normal?
Yes
Go to the next step.
No
Repair or replace the connector and/or terminal, then go to Step 7.
5
INSPECT COUPLER COMPONENT CONNECTOR FOR POOR CONNECTION
•  Disconnect the coupler component connector.
•  Inspect for poor connection at coupler component terminals A and B (such as damaged/pulled-out pins, corrosion).
•  Are terminals normal?
Yes
Go to Step 7.
No
Repair or replace the connector and/or terminal, then go to Step 7.
6
INSPECT TFT SENSOR
•  Inspect the TFT sensor.
•  Is the TFT sensor normal?
Yes
Repair or replace the wiring harness for open circuit, go to the next step.
No
Replace the TFT sensor, then go to the next step.
(See TRANSMISSION FLUID TEMPERATURE (TFT) SENSOR REMOVAL/INSTALLATION [SJ6A-EL].)
7
VERIFY SAME DTC IS NOT PRESENT
•  Always reconnect all disconnected connectors.
•  Clear the DTC using the M-MDS.
•  Perform the following procedure to ensure that the DTC has been resolved:
1.  Start the engine.
2.  Warm-up the engine and transmission.
3.  Drive the vehicle in D position and make sure that the gears shift smoothly from 1GR to 6GR.
•  Perform the DTC inspection using the M-MDS.
•  Is the same DTC present?
Yes
Replace the TCM, then go to the next step.
(See TCM REMOVAL/INSTALLATION [SJ6A-EL].)
No
Go to the next step.
8
VERIFY DTC TROUBLESHOOTING COMPLETED
•  Clear the DTC using the M-MDS.
•  Perform the DTC inspection using the M-MDS.
•  Are any DTCs present?
Yes
Go to the applicable DTC inspection.
(See ON-BOARD DIAGNOSTIC SYSTEM DTC TABLE [TCM (SJ6A-EL)].)
No
DTC troubleshooting completed.
