TRANSMISSION FLUID TEMPERATURE (TFT) SENSOR REMOVAL/INSTALLATION [SJ6A-EL]

id051311710400

Without i-stop

Warning

•  A hot transmission and ATF can cause severe burns. Turn off the engine and wait until they are cool before replacing ATF.

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2.  Drain the ATF. (See AUTOMATIC TRANSMISSION FLUID (ATF) REPLACEMENT [SJ6A-EL].)

3.  Remove the oil pan and gasket.

Caution

•  Do not damage the installation surface of the transmission case and the oil pan.

•  Do not deform the oil pan.

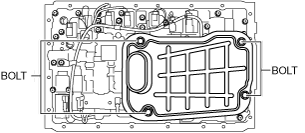

4.  Remove the oil strainer from the control valve body component.

amxuuw00003553

5.  Remove the O-ring from the oil strainer.

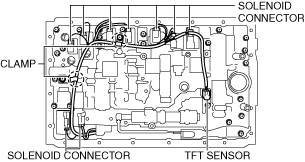

6.  Disconnect the connectors from the solenoids.

amxuuw00003554

7.  Disconnect the coupler component from the clamps.

8.  Remove the lock plate from the control valve body component.

amxuuw00003555

9.  Pull the TFT sensor from the control valve body component.

10.  Remove the coupler component mounting bolt from the transmission case.

11.  Remove the coupler component from the transmission case.

12.  Remove the O-ring from the coupler component.

13.  Install a new O-ring to the coupler component.

14.  Tighten the coupler component mounting bolt to the transmission case.

15.  Install the TFT sensor and the lock plate with the bolt to the control valve body component.

amxuuw00003555

16.  Connect the coupler component to the clamps.

amxuuw00003554

amxuuw00003567

17.  Connect the connectors to the solenoids.

18.  Coat a new O-ring with ATF and install it to the oil strainer.

19.  Install the oil strainer to the control valve body component with the bolts.

amxuuw00003553

Caution

•  Be careful not to allow foreign matter to penetrate the interior of the transmission.

20.  Clean the contact surface of the oil pan and transmission case.

e5u513zw5069

Caution

•  Do not damage the fitting surface of the transmission case and the oil pan.

•  Do not deform the oil pan.

21.  Install a new oil pan gasket and the oil pan to the transmission case.

amxuuw00003569

Caution

•  Be careful not to tighten the bolts excessively because the oil pan gasket is made of cork.

22.  Tighten the oil pan installation bolt.

23.  Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

24.  Add ATF and, with the engine idling, inspect the ATF level and inspect for leakage. (See AUTOMATIC TRANSMISSION FLUID (ATF) LEVEL ADJUSTMENT [SJ6A-EL].)

With i-stop

Warning

•  A hot transmission and ATF can cause severe burns. Turn off the engine and wait until they are cool before replacing ATF.

Caution

•  Foreign matter in the electric AT oil pump and transmission may cause a malfunction. Perform the following procedures before replacing the electric AT oil pump to prevent foreign matter from entering the AT oil pump and transmission.

―  Clean the outside of the transmission using steam or detergent oil.

―  Verify that there is no foreign matter on the hand of the person servicing the vehicle.

•  Do not drop or apply a shock to the electric AT oil pump. Replace the electric AT oil pump if it has been dropped or received an impact.

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2.  Remove the selector lever knob. (See AUTOMATIC TRANSMISSION SHIFT MECHANISM REMOVAL/INSTALLATION.)

3.  Remove the shift panel component. (See SHIFT PANEL REMOVAL/INSTALLATION.)

4.  Remove the upper panel. (See UPPER PANEL REMOVAL/INSTALLATION.)

5.  Remove the parking brake lever boot panel. (See PARKING BRAKE LEVER BOOT PANEL REMOVAL/INSTALLATION.)

6.  Remove the rear console. (See REAR CONSOLE REMOVAL/INSTALLATION.)

7.  Remove the front console panel. (See FRONT CONSOLE PANEL REMOVAL/INSTALLATION.)

8.  Remove the front console component. (See FRONT CONSOLE REMOVAL/INSTALLATION.)

9.  Disconnect the connector and wiring harness clip.

amxuuw00002845

10.  Place a clean rag behind the engine so that the engine does not contact the rear housing when it is tilted.

amxuuw00004812

11.  Remove the front crossmember under cover. (See FRONT CROSSMEMBER UNDER COVER REMOVAL/INSTALLATION.)

12.  Disconnect the control rod from the selector lever component. (See AUTOMATIC TRANSMISSION SHIFT MECHANISM REMOVAL/INSTALLATION.)

13.  Remove the tunnel member.

amxuuw00003817

14.  Disconnect the HO2S connector. (See HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)

15.  Disconnect the TWC from the exhaust manifold (WU-TWC). (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)

16.  Suspend the TWC using a cable as shown in the figure.

amxuuw00002847

17.  Remove the power plant frame. (See POWER PLANT FRAME REMOVAL [M66M-D].)

18.  Tilt the transmission while being careful not to allow parts on the back of the engine to contact the vehicle body.

19.  Clean the outside of the transmission using steam or detergent oil.

20.  Drain the ATF. (See AUTOMATIC TRANSMISSION FLUID (ATF) REPLACEMENT [SJ6A-EL].)

21.  Remove the electric AT oil pump.

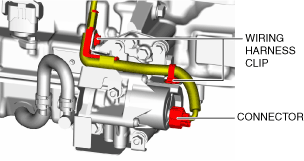

(1)  Disconnect the connector and wiring harness clip.

amxzzw00003295

(2)  Remove the under cover.

amxzzw00003296

Caution

•  Be careful not to deform the under cover and coupler bracket, if they are deformed the electric AT oil pump may malfunction.

(3)  Slide the hose clamps upward and remove the hose.

amxzzw00003308

Caution

•  Because the ATF remaining in the hose may leak, drain the ATF into a container to prevent if from getting on parts.

(4)  Remove the following parts as a single unit.

•  Spacer

•  Gasket

•  Electric AT oil pump

amxzzw00005875

Caution

•  Do not use an impact wrench, otherwise damage in the electric oil pump might occur.

•  Be careful not to drop the electric AT oil pump. When removing the bolts, support the electric AT oil pump by hand to prevent it from falling.

22.  Remove the oil pan and gasket.

Caution

•  Do not damage the installation surface of the transmission case and the oil pan.

•  Do not deform the oil pan.

23.  Remove the oil strainer from the control valve body component.

amxuuw00003553

24.  Remove the O-ring from the oil strainer.

25.  Disconnect the connectors from the solenoids.

amxuuw00003554

26.  Disconnect the coupler component from the clamps.

27.  Remove the lock plate from the control valve body component.

amxuuw00003555

28.  Pull the TFT sensor from the control valve body component.

29.  Remove the coupler component mounting bolt from the transmission case.

30.  Remove the coupler component from the transmission case.

31.  Remove the O-ring from the coupler component.

32.  Install a new O-ring to the coupler component.

33.  Tighten the coupler component mounting bolt to the transmission case.

34.  Install the TFT sensor and the lock plate with the bolt to the control valve body component.

amxuuw00003555

35.  Connect the coupler component to the clamps.

amxuuw00003554

amxuuw00003567

36.  Connect the connectors to the solenoids.

37.  Coat a new O-ring with ATF and install it to the oil strainer.

38.  Install the oil strainer to the control valve body component with the bolts.

amxuuw00003553

Caution

•  Be careful not to allow foreign matter to penetrate the interior of the transmission.

39.  Clean the contact surface of the oil pan and transmission case.

e5u513zw5069

Caution

•  Do not damage the fitting surface of the transmission case and the oil pan.

•  Do not deform the oil pan.

40.  Install a new oil pan gasket and the oil pan to the transmission case.

amxuuw00003569

Caution

•  Be careful not to tighten the bolts excessively because the oil pan gasket is made of cork.

41.  Tighten the oil pan installation bolt.

42.  Clean the contact surfaces of the transmission and spacer.

(1)  Wait until all the ATF drips off of the contact surfaces.

(2)  Completely remove any remaining ATF from the contact surfaces.

Caution

•  Do not let foreign matter enter the transmission. Otherwise, it could cause a malfunction.

(3)  Verify that there are no cloth threads or foreign matter remaining on the contact surfaces.

43.  Install the electric AT oil pump and spacer component to the transmission.

(1)  Completely remove any remaining ATF on the contact surfaces of the electric AT oil pump, spacer component and transmission, and the area around the installation bolts.

Caution

•  Do not let foreign matter enter the electric AT oil pump and spacer. Otherwise, it could cause a malfunction.

(2)  Verify that there are no cloth threads or foreign matter remaining on the contact surfaces.

(3)  Verify that the check valve is assembled securely to the transmission.

•  If the check valve is removed from the transmission, assemble it as shown in the figure.

amxzzw00003303

(4)  Put the new bolts through the electric AT oil pump bolt installation holes.

Caution

•  Completely remove any oil on the bolts.

(5)  Install a new gasket to the electric AT oil pump and spacer component as shown in the figure.

amxzzw00004457

Caution

•  The effectiveness of the seal decreases if the gasket is deformed. Do not drop or apply a shock to the gasket.

•  Do not allow foreign matter or ATF to get on the gasket. Remove any foreign matter and ATF on the gasket with a clean cloth.

(6)  Temporarily tighten the bolts while aligning the position of the gasket.

Caution

•  Be careful not to scratch or damage the gasket.

(7)  Completely remove any remaining ATF on the electric AT oil pump and bolts.

•  If ATF seeps out after wiping it off, remove the bolts and the electric AT oil pump and completely remove any remaining ATF on the electric AT oil pump again. At this time, replace the gasket and bolts with new ones.

(8)  Verify that there is no ATF on the electric AT oil pump and bolts.

Caution

•  Do not tighten the bolts with ATF adhered to the electric AT oil pump and bolts. Otherwise, the bolts may become damaged.

(9)  Tighten the bolts.

amxzzw00003305

Caution

•  Do not use an impact wrench, otherwise damage in the electric oil pump might occur.

(10)   Install the hose and hose clamps to the positions shown in the figure.

amxzzw00003314

Caution

•  Do not let foreign matter enter the hose and electric AT oil pump. Otherwise, it could cause a malfunction.

•  Install the hose clamp tabs so that they face a direction that does not contact the under cover.

•  Be careful not to pinch the hose with the protector.

(11)   Completely remove any remaining ATF from the area around the hose.

(12)   Install the under cover.

amxzzw00003307

Caution

•  Be careful not to deform the under cover and coupler bracket, if they are deformed the electric AT oil pump may malfunction.

(13)   Install the coupler bracket.

(14)  Connect the connector and wiring harness clip.

amxzzw00003295

44.  Install the power plant frame. (See POWER PLANT FRAME INSTALLATION [M66M-D].)

45.  Remove the tunnel member temporarily.

amxuuw00003817

46.  Connect the TWC to the exhaust manifold (WU-TWC). (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)

47.  Connect the HO2S connector. (See HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)

48.  Install the tunnel member.

amxuuw00003818

49.  Connect the control rod from the selector lever component. (See AUTOMATIC TRANSMISSION SHIFT MECHANISM REMOVAL/INSTALLATION.)

50.  Install the front crossmember under cover. (See FRONT CROSSMEMBER UNDER COVER REMOVAL/INSTALLATION.)

51.  Connect the connector and wiring harness clip.

amxuuw00002845

52.  Install the front console component. (See FRONT CONSOLE REMOVAL/INSTALLATION.)

53.  Install the front console panel. (See FRONT CONSOLE PANEL REMOVAL/INSTALLATION.)

54.  Install the rear console. (See REAR CONSOLE REMOVAL/INSTALLATION.)

55.  Install the parking brake lever boot panel. (See PARKING BRAKE LEVER BOOT PANEL REMOVAL/INSTALLATION.)

56.  Install the upper panel. (See UPPER PANEL REMOVAL/INSTALLATION.)

57.  Install the shift panel component. (See SHIFT PANEL REMOVAL/INSTALLATION.)

58.  Install the selector lever knob. (See AUTOMATIC TRANSMISSION SHIFT MECHANISM REMOVAL/INSTALLATION.)

59.  Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

60.  Add the ATF. (See AUTOMATIC TRANSMISSION FLUID (ATF) REPLACEMENT [SJ6A-EL].)

61.  Inspect the ATF level and condition. (See AUTOMATIC TRANSMISSION FLUID (ATF) INSPECTION [SJ6A-EL].) (See AUTOMATIC TRANSMISSION FLUID (ATF) LEVEL ADJUSTMENT [SJ6A-EL].)

62.  Bleed the air from the electric AT oil pump.

(1)  Connect the M-MDS to the DLC-2.

(2)  After vehicle identification is completed, select the following from the M-MDS initial screen.

1)  “Data logger”

2)  “Module”

3)  “TCM”

(3)  Select “EOP” from the PID/DATA Monitor Table.

(4)  Perform simulation item “EOP” for 30 s.

(5)  Verify that the vehicle does not lurch when the i-stop is operated and the engine restarts.

•  If the vehicle lurches, go back to Step (2) and perform air bleeding again.

Caution

•  When performing simulation item “EOP” successively, wait 10 s or more in between tests. If a 10 s or more wait between tests is not performed, the motor in the electric AT oil pump will overheat, which may cause damage to the electric AT oil pump.
