CLIMATE CONTROL UNIT [MANUAL AIR CONDITIONER]

id0740a2005100


Purpose

•  The climate control unit controls the air conditioner in conjunction with the A/C operations performed by the occupants.

Function

•  The climate control unit outputs an operation signal for each switch or dial. (See MANUAL AIR CONDITIONER SYSTEM [MANUAL AIR CONDITIONER].)

Construction

•  A logic-type climate control unit has been adopted.
•  The climate control unit consists of a control panel and a control unit.
•  The MS-CAN terminal resistance is integrated into the climate control unit.

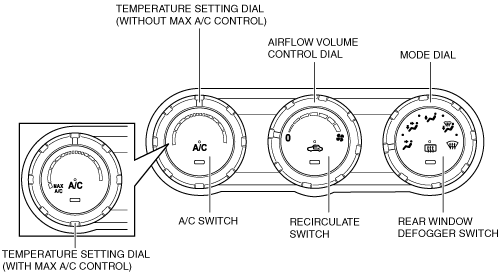

•  The switches and dials shown in the figure are positioned on the control panel.
amxzzn00000812

Operation

•  The climate control unit performs the controls shown in the following table.

Without MAX A/C control

Airflow temperature control

Airflow volume control

Airflow mode control

Operation switches/dials

Control before switch operation

Control before switch operation

Control before switch operation

Manual control

Manual control

Manual control

Defroster control
Airflow volume control
dial
OFF
No change
OFF
No change
No change
1―7
Manual control
Mode dial
VENT
No change
No change
Manual control
Manual control
•
BI-LEVEL
•
HEAT
•
DEF/HEAT
•
DEFROSTER
Defroster control
No change
Temperature setting dial
No change
No change
No change
No change
A/C switch
No change
No change
No change
No change
Recirculate switch
No change
No change
No change
No change
Rear window defogger switch
No change
No change
No change
No change

A/C compressor control

Air intake control

Operation switches/dials

Control before switch operation

Control before switch operation

Manual control

Manual control

Defroster control
Airflow volume control
dial
OFF
OFF
No change
No change
1―7
No change
Mode dial
VENT
No change
No change
Manual control
•
BI-LEVEL
•
HEAT
•
DEF/HEAT
•
DEFROSTER
Defroster control
No change
Temperature setting dial
No change
No change
No change
A/C switch
Manual control
No change
No change
Recirculate switch
No change
Manual control
No change
Rear window defogger switch
No change
No change
No change

With MAX A/C control

Airflow temperature control

Airflow volume control

Airflow mode control

Operation switches/dials

Control before switch operation

Control before switch operation

Control before switch operation

Manual control

Manual control

Manual control

Defroster control
Airflow volume control
dial
OFF
No change
OFF
No change
No change
1―7
Manual control
Mode dial
VENT
No change
No change
Manual control
Manual control
•
BI-LEVEL
•
HEAT
•
DEF/HEAT
•
DEFROSTER
Defroster control
No change
Temperature setting dial
MAX A/C
No change
No change
No change
No change
EXCEPT MAX A/C
A/C switch
No change
No change
No change
No change
Recirculate switch
No change
No change
No change
No change
Rear window defogger switch
No change
No change
No change
No change

A/C compressor control

Operation switches/dials

Control before switch operation

Manual control

MAX A/C control
Airflow volume control
dial
OFF
OFF
OFF
1―7
No change
No change
Mode dial
VENT
No change*1
No change
•
BI-LEVEL
•
No change
Manual control
HEAT
•
DEF/HEAT
•
DEFROSTER
Temperature setting dial
MAX A/C
No change*1
No change
EXCEPT MAX A/C
No change
Manual control
A/C switch
Manual control
MAX A/C control
Recirculate switch
No change
No change
Rear window defogger switch
No change
No change

*1  :When the MAX A/C control conditions are met, it switches to MAX A/C control.
