DTC B1DA1:94 [RETRACTABLE HARDTOP CONTROL MODULE]

id0902r4076700

Description

Error signal received from top lock motor
Detection condition
•  The retractable hardtop control module receives a signal from the top lock motor while the top lock motor is not operating.
Fail-safe
•  Stops retractable hardtop operation
Possible cause

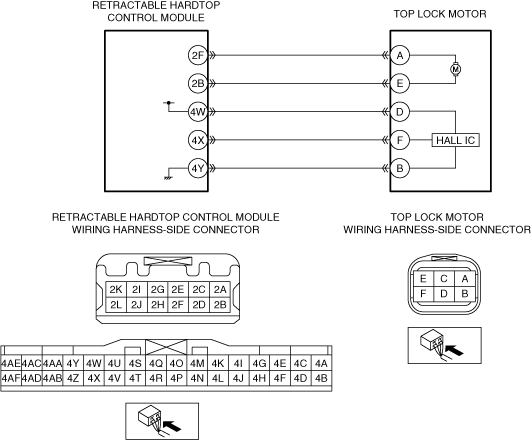

•  Short to power supply in wiring harness between the following terminals:
―  Retractable hardtop control module terminal 2B and top lock motor terminal E
―  Retractable hardtop control module terminal 2F and top lock motor terminal A
•  top lock motor malfunction
•  Retractable hardtop control module malfunction

Diagnostic Procedure

Step

Inspection

Action
1
VERIFY OTHER RETRACTABLE HARDTOP CONTROL MODULE DTCs
•  Clear the DTC for the retractable hardtop control module using the M-MDS.
•  Retrieve the retractable hardtop control module DTCs using the M-MDS.
•  Is the DTCs U3000:44/U3000:45/U3000:49 displayed?
Yes
Replace the retractable hardtop control module, then go to Step 4.
(See RETRACTABLE HARDTOP CONTROL MODULE REMOVAL/INSTALLATION.)
No
Go to the next step.
2
INSPECT TOP LOCK MOTOR CIRCUIT FOR SHORT TO POWER SUPPLY
•  Switch the ignition off.
•  Disconnect the negative battery cable.
•  Disconnect the retractable hardtop control module and top lock motor connectors.
•  Connect the negative battery cable.
•  Switch the ignition ON (engine off or on).
•  Measure the voltage at the following terminals (wiring harness-side):
―  Top lock motor terminal E
―  Top lock motor terminal A
•  Is the voltage 0 V?
Yes
Go to the next step.
No
Refer to the wiring diagram and verify whether or not there is a common connector between the following terminals:
•  Retractable hardtop control module terminal 2B and top lock motor terminal E
•  Retractable hardtop control module terminal 2F and top lock motor terminal A
If there is a common connector:
•  Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to power supply.
•  Repair or replace the malfunctioning part.
If there is no common connector:
•  Repair or replace the wiring harness which has a short to power supply.
Go to Step 4.
3
INSPECT TOP LOCK MOTOR
•  Inspect the top lock motor.
•  Is the top lock motor normal?
Yes
Go to the next step.
No
Replace the top lock motor , then go to the next step.
(See TOP LOCK MOTOR REMOVAL/INSTALLATION.)
4
VERIFY THAT REPAIRS HAVE BEEN COMPLETED
•  Always reconnect all disconnected connectors.
•  Connect the negative battery cable.
•  Clear the DTC for the retractable hardtop control module using the M-MDS.
•  Retrieve the retractable hardtop control module DTCs using the M-MDS.
•  Is the same DTC displayed?
Yes
Repeat the inspection from Step 1.
•  If the malfunction recurs, replace the retractable hardtop control module.
Go to the next step.
No
Go to the next step.
5
VERIFY IF OTHER DTCs DISPLAYED
•  Are any other DTCs displayed?
Yes
Repair or replace the malfunctioning part according to the applicable DTC troubleshooting.
(See DTC TABLE [RETRACTABLE HARDTOP CONTROL MODULE].)
No
DTC troubleshooting completed.
