FRONT BUMPER REINFORCEMENT REMOVAL/INSTALLATION


id091000800600

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Front bumper (See FRONT BUMPER REMOVAL.) (See FRONT BUMPER INSTALLATION.)
(2)  Front bumper slider (See FRONT BUMPER SLIDER REMOVAL/INSTALLATION.)
(3)  Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.)
(4)  Energy-absorbing form (front side) (with energy-absorbing form) (See ENERGY-ABSORBING FORM REMOVAL/INSTALLATION.)
(5)  Crash zone sensor (See CRASH ZONE SENSOR REMOVAL/INSTALLATION.)

3.  Remove the fastener.

amxzzw00003867

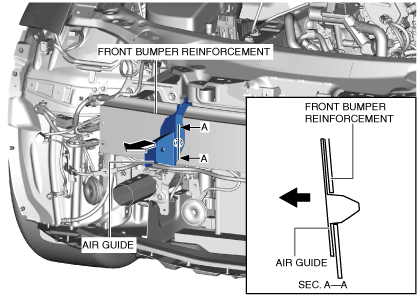

4.  Remove the air guide.

amxzzw00003868

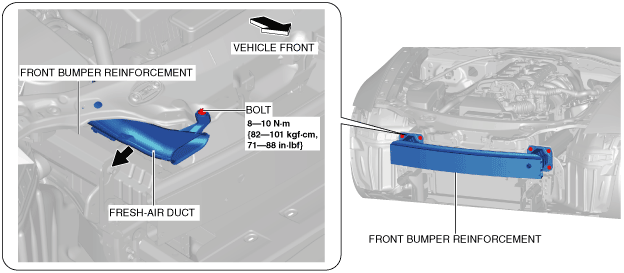

5.  Remove the bolt and set the fresh-air duct aside in the direction of the arrow shown in the figure.

amxuuw00003137

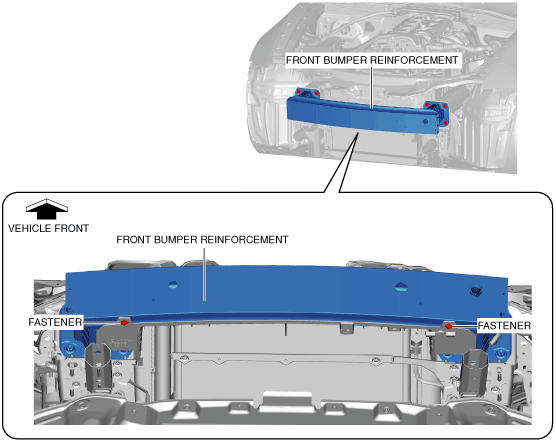

6.  Remove the fasteners.

amxuuw00003139

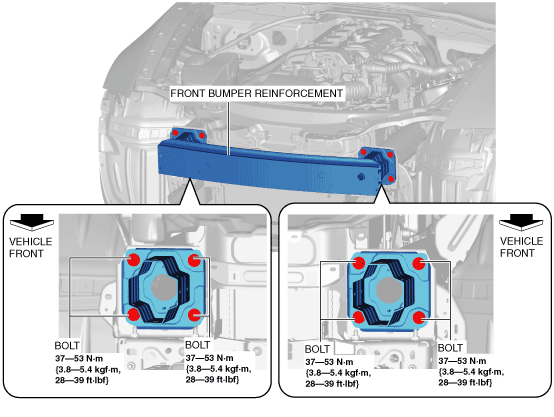

7.  Remove the bolts.

amxuuw00003141

8.  Remove the front bumper reinforcement.

9.  Install in the reverse order of removal.
