SEAL PLATE REMOVAL/INSTALLATION

id091000889000

Seal Plate (LH)

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2.  Lift up the vehicle.

3.  Remove the front under cover. (See FRONT UNDER COVER REMOVAL/INSTALLATION.)

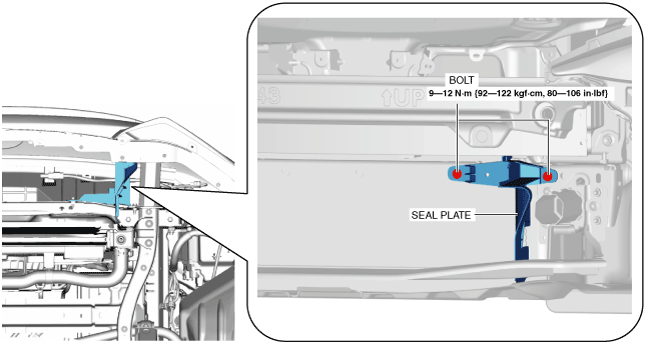

4.  Remove the bolts.

amxzzw00002896

5.  Remove the seal plate.

6.  Install in the reverse order of removal.

Seal Plate (RH)

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2.  Lift up the vehicle.

3.  Remove the front under cover. (See FRONT UNDER COVER REMOVAL/INSTALLATION.)

4.  Remove the wiring harness clip.

amxzzw00004527

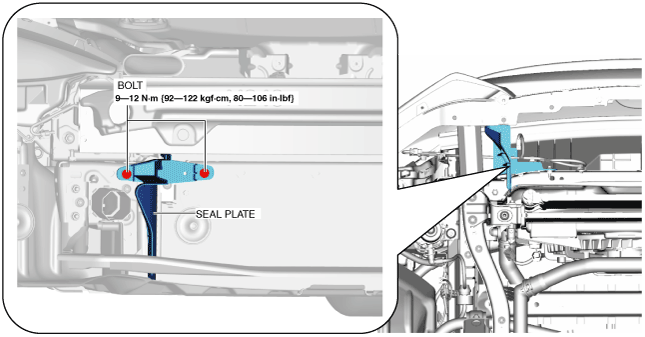

5.  Remove the bolts.

amxzzw00002898

6.  Remove the seal plate.

7.  Install in the reverse order of removal.
