DOOR CHECKER REMOVAL/INSTALLATION

id091100602800

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2.  Remove the door trim. (See DOOR TRIM REMOVAL/INSTALLATION.)

3.  Remove the door speaker. (See DOOR SPEAKER REMOVAL/INSTALLATION.)

4.  Remove the bolt.

amxuuw00003092

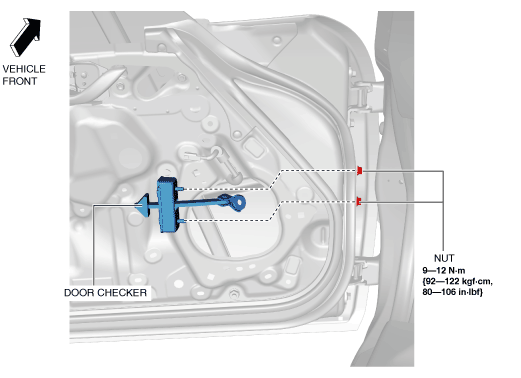

5.  Remove the nuts.

amxzzw00002924

6.  Remove the door checker through the door speaker installation hole.

7.  Install in the reverse order of removal.
