BONNET LATCH REMOVAL/INSTALLATION

id091400006400

1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2. Remove the front bumper. (See FRONT BUMPER REMOVAL.) (See FRONT BUMPER INSTALLATION.)

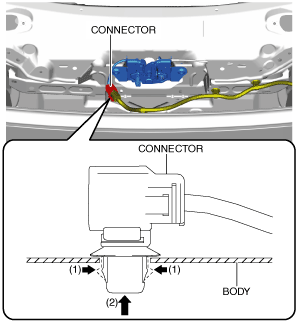

3. While pressing the tabs of the clip in the direction of arrow (1) shown in the figure, press it in the direction of arrow (2) to detach the connector tabs from the body.

amxzzw00003504

4. Remove the connector antenna from the body.

5. Disconnect the connector.

6. Disconnect the bonnet release cable.

amxzzw00003505

7. Remove the bolts.

8. Remove the bonnet latch. (See Bonnet latch Installation Note.)

9. Install in the reverse order of removal.

Bonnet latch Installation Note

• Refer to [BONNET ADJUSTMENT] and adjust the bonnet latch so that the height difference and gap of the bonnet is within the specification. (See BONNET ADJUSTMENT.)

amxzzw00003506
