METER HOOD DISASSEMBLY/ASSEMBLY

id091700608300

1.  Disassemble in the order indicated in the table.

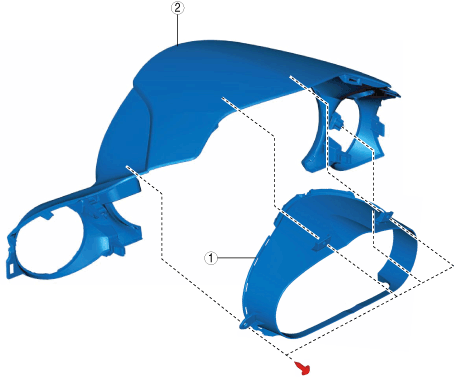

amxzzw00004795

1	Meter cover
2	Meter hood

2.  When replacing the meter hood, remove the following parts:

(1)  Microphone (with center display) (with Bluetooth^® unit) (See MICROPHONE REMOVAL/INSTALLATION.)

(2)  Center ventilator grille No.2 (See VENTILATOR GRILLE REMOVAL/INSTALLATION.)

(3)  Side ventilator grille No.1 (See VENTILATOR GRILLE REMOVAL/INSTALLATION.)

3.  Assemble in the reverse order of disassembly.
