BACK-UP LIGHT REMOVAL/INSTALLATION

id091800850600

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2.  Remove the rear splash shield. (See REAR SPLASH SHIELD REMOVAL/INSTALLATION.)

3.  Disconnect the connector.

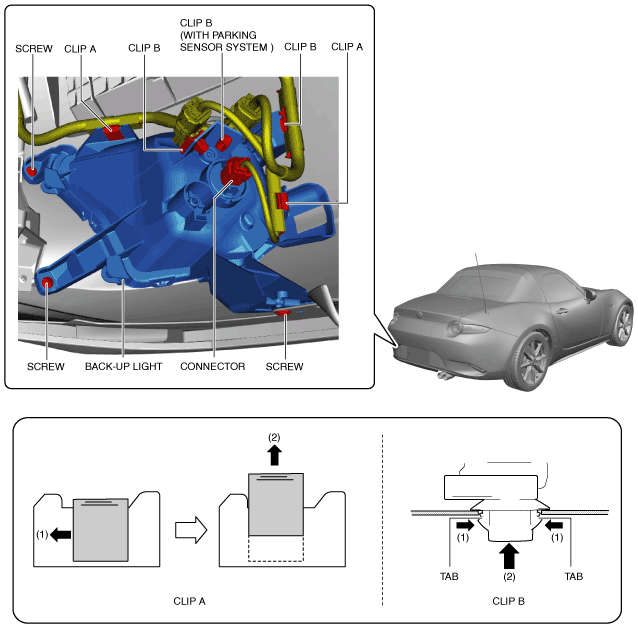

Back-up light (LH)

amxzzw00003213

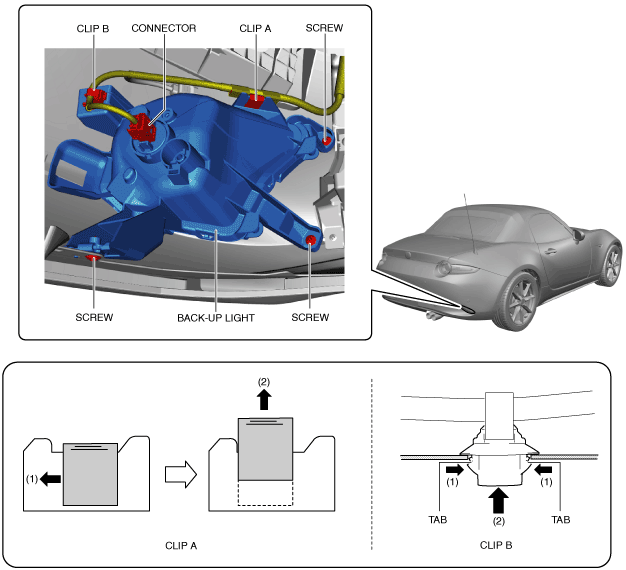

Back-up light (RH)

amxzzw00003214

4.  Remove the screws.

5.  While sliding clip A in the direction of arrow (1) shown in the figure, pull clip A in the direction of arrow (2) to detach it from the back-up light.

6.  While pressing the clip B tabs in the direction of arrows (1) shown in the figure, press the clip B in the direction of arrow (2) to detach the clip B tabs from the back-up light.

7.  Remove the back-up light.

amxuuw00003363

8.  Install in the reverse order of removal.
