AUTO LEVELING SENSOR SHORT-CORD INSPECTION

id091800905100

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2.  Remove the auto leveling sensor short-cord. (See AUTO LEVELING SENSOR SHORT-CORD REMOVAL/INSTALLATION.)

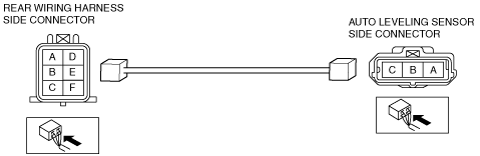

3.  Verify that the continuity between the auto leveling sensor short-cord terminals is as indicated in the table.

amxuuw00003375

amxuuw00003376

•  If not as indicated in the table, replace the auto leveling sensor short-cord. (See AUTO LEVELING SENSOR SHORT-CORD REMOVAL/INSTALLATION.)
