HEADLIGHT CLEANER MOTOR INSPECTION

id091900803200

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

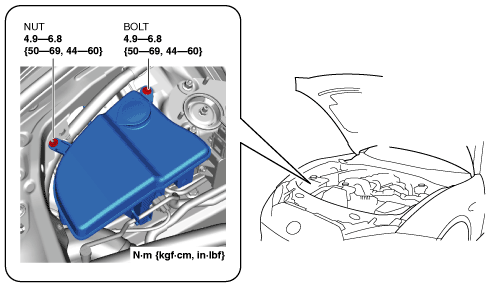

2.  Remove the nut.

amxzzw00003269

3.  Remove the bolt.

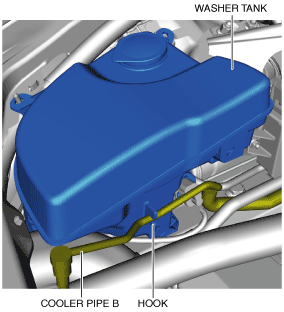

4.  Pull cooler pipe B out from the washer tank hook.

amxzzw00003270

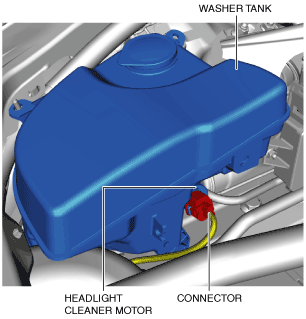

5.  Disconnect the connector.

amxzzw00003271

6.  Apply battery positive voltage to headlight cleaner motor connector terminal A, and connect terminal B to ground.

amxzzw00003272

7.  Verify that washer fluid sprays from the headlight cleaner nozzle.

amxzzw00003273

•  If washer fluid does not spray from the headlight cleaner nozzle, replace the headlight cleaner motor. (See HEADLIGHT CLEANER MOTOR REMOVAL/INSTALLATION.)
