HEADLIGHT CLEANER NOZZLE REMOVAL/INSTALLATION

id091900808200

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2.  Remove the front bumper. (See FRONT BUMPER REMOVAL.) (See FRONT BUMPER INSTALLATION.)

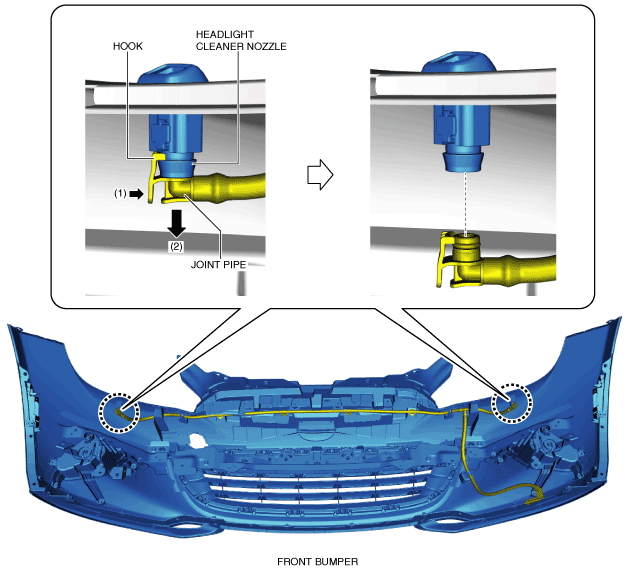

3.  While pressing the hook of the joint pipe in the direction of arrow (1) shown in the figure, pull the joint pipe in the direction of arrow (2) to disconnect the joint pipe from the headlight cleaner nozzle.

amxzzw00003263

4.  While pulling the headlight cleaner nozzle tab in the direction of the arrow (1) shown in the figure, pull the headlight cleaner nozzle in the direction of arrow (2) to detach the headlight cleaner nozzle tab from the headlight cleaner cover.

amxzzw00003264

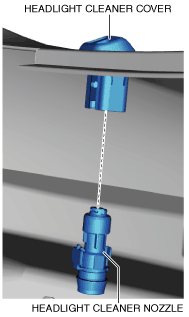

5.  Remove the headlight cleaner nozzle.

amxzzw00003265

6.  Install in the reverse order of removal.
