CENTER DISPLAY REMOVAL/INSTALLATION

id092000031300

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Scuff plate (passenger's side) (See SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Front side trim (passenger's side) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)  A-pillar trim (passenger's side) (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(4)  Passenger-side lower panel (See PASSENGER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)

(5)  Center panel No.2 (See CENTER PANEL No.2 REMOVAL/INSTALLATION.)

(6)  Meter hood (See METER HOOD REMOVAL/INSTALLATION.)

3.  Remove the bolt.

amxuuw00002916

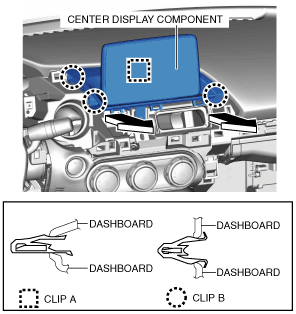

4.  Pull the center display component in the direction of the arrows shown in the figure and detach clips A and B from the dashboard.

amxuuw00002917

5.  Pull out the center display component in the direction of the arrow shown in the figure and disconnect it.

amxuuw00002918

6.  Remove the center display component.

7.  Remove the connectivity master unit (CMU) when replacing the center display. (See CONNECTIVITY MASTER UNIT (CMU) REMOVAL/INSTALLATION.)

8.  Install in the reverse order of removal.
