GPS ANTENNA FEEDER INSPECTION
id092000802100
1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)
2. Remove the following parts:
- (1) Scuff plate (passenger's side) (See SCUFF PLATE REMOVAL/INSTALLATION.)
- (2) Front side trim (passenger's side) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
- (3) A-pillar trim (passenger's side) (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
- (4) Passenger-side lower panel (See PASSENGER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)
- (5) Center panel No.2 (See CENTER PANEL No.2 REMOVAL/INSTALLATION.)
- (6) Meter hood (See METER HOOD REMOVAL/INSTALLATION.)
- (7) Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)
- (8) Center display component (See CENTER DISPLAY REMOVAL/INSTALLATION.)

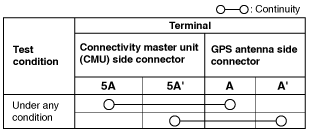

3. Verify that the continuity between GPS antenna feeder terminals is as indicated in the table.
