ANTENNA FEEDER NO.1 INSPECTION
id092000812400
L.H.D.
1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)
2. Remove the following parts:
- (1) Scuff plate (passenger's side) (See SCUFF PLATE REMOVAL/INSTALLATION.)
- (2) Front side trim (passenger's side) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
- (3) A-pillar trim (passenger's side) (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
- (4) Passenger-side lower panel (See PASSENGER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)
- (5) Center panel No.2 (See CENTER PANEL No.2 REMOVAL/INSTALLATION.)
- (6) Meter hood (See METER HOOD REMOVAL/INSTALLATION.)
- (7) Audio unit (See AUDIO UNIT REMOVAL/INSTALLATION.)
3. Disconnect the connector.

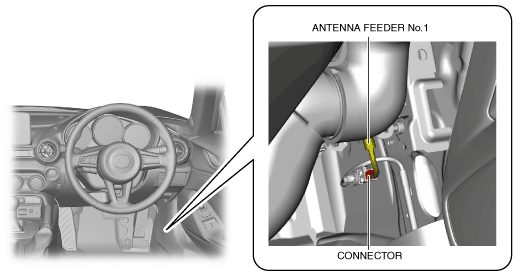

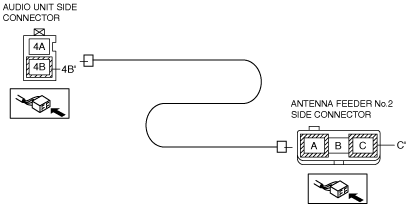

4. Verify that the continuity between antenna feeder No.1 terminals is as indicated in the table.
-
R.H.D.
1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)
2. Remove the following parts:
- (1) Scuff plate (passenger's side) (See SCUFF PLATE REMOVAL/INSTALLATION.)
- (2) Front side trim (passenger's side) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
- (3) A-pillar trim (passenger's side) (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
- (4) Passenger-side lower panel (See PASSENGER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)
- (5) Center panel No.2 (See CENTER PANEL No.2 REMOVAL/INSTALLATION.)
- (6) Meter hood (See METER HOOD REMOVAL/INSTALLATION.)
- (7) Audio unit (See AUDIO UNIT REMOVAL/INSTALLATION.)
3. Disconnect the connector.
4. Verify that the continuity between antenna feeder No.1 terminals is as indicated in the table.
-
